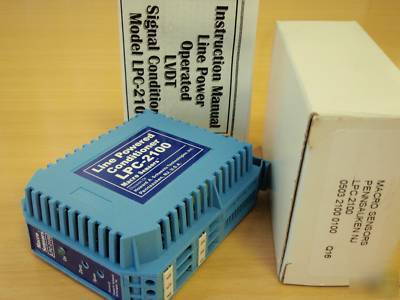

New macro sensors brand lpc-2100 line powered cond.
For sale - brand new in the box!! The LPC-2100 is a compact, single channel AC-operated signal conditioner capable of operating most LVDTs (which I also have for sale, inquire for listings). These sell for $468.00, new. We bought these for a project and never ended up using them. Let our loss be your gain. I'm not in the office on the weekends, so responses to questions will be delayed accordingly.
0 to 10 VDC, 0 to 10 VDC, or 4 to 20 mA output
1.5 or 3.0 Vrms LVDT excitation
3, 5, or 10 kHz excitation frequency
Master/slave excitation synchronization
115 V AC, 50-60 Hz, 2.5 VA (LPC-2100-100)
220 V AC, 50-60 Hz, 1.3 VA (LPC-2100-200)
3.0 Vrms (nominal) for primary impedance greater than or equal to 200 Ohms
1.5 Vrms (nominal) for primary impedance less than or equal to 200 Ohms
500 Ohms maximum loop resistance
0.01% of full scale output (max.)
25 Arms (max. current loop output)
Thermal Coefficient of Sensitivity
