New - bimba twin bore air cylinder tba-25150-K11M
New - Bimba Twin Bore Air Cylinder TBA-25150-K11M
* This air cylinder is made by Bimba
* This air cylinder is a Hardinge p/n GT0002917TBA5

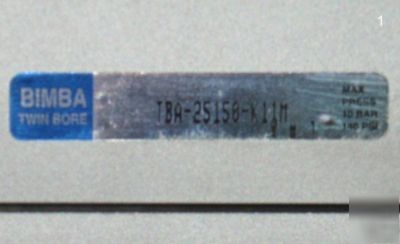

* Picture #1 show the tag on the part. It has the following information on it: Bimba Twin Bore; TBA-25150-K11M and Max. Pressure 10 bar, 140 PSI

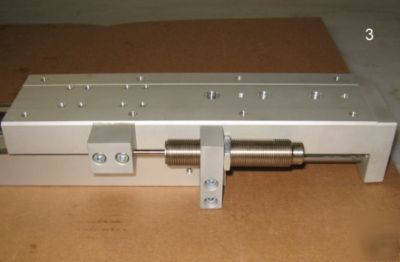

* There are two stops (picture #3). The stops are 3 long.
* There are two fittings (red caps). The fittings are .159 diameter

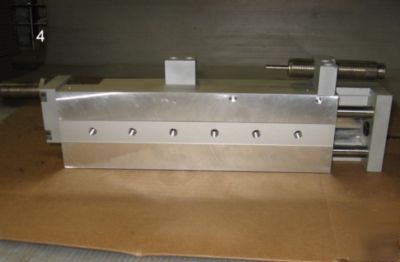

* There are six mounting holes on the bottom (picture #4). The holes are 260 diameter and they are 1 apart

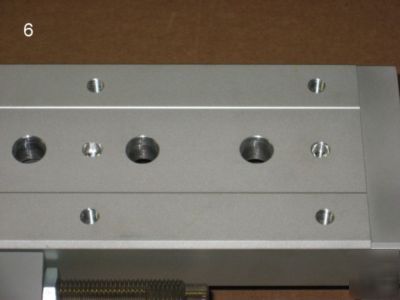

* There are eight mounting holes on the top (picture #6). The holes are .192 diameter and are 2 apart side to side and 3 end to end
* The overall dimensions are 16 long, 2 high and 4 wide
