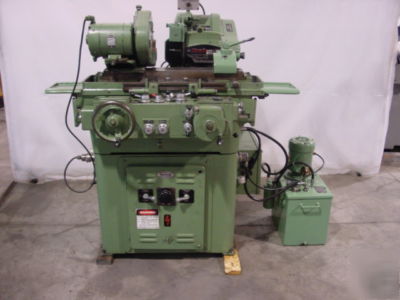

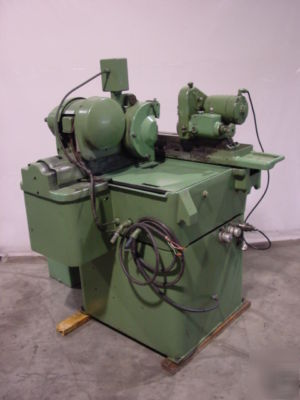

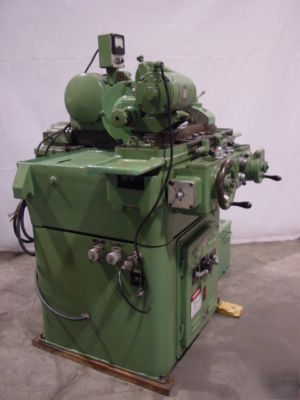

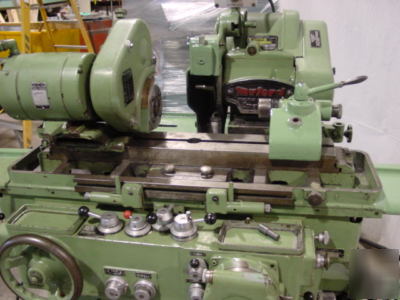

Myford plain cylindrical grinder
Myford Plain Cylindrical Grinder
Hydraulic Table Speeds: 0 - 120 IPM
Table Swivel Either Way: 10 Degrees
Table Travel Per Rev. of Handwheel: 0.44"
Hydraulic Retraction of Wheelhead: 1-1/8"
Infeed Rate of Wheelhead: 0.001" - 0.000 IPM
Wheelhead Feed Graduations: 0.0001"
Fine Feed to Dead Stop: 0.001"
Wheel Spindle Speeds: 2200 & 2500 RPM
Max. Grinding Wheel Size: 10" x 1" x 3"
Work Head Speeds: (2) Ranges 75 to 780 RPM
Approximate Dimensions: L-R 52" x F-B54" x High 61"
