Graco thermoflow T7 adhesive hot melt tank controller
This listing is for a replacement control panel.

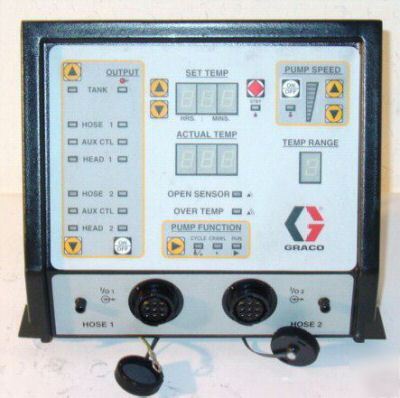

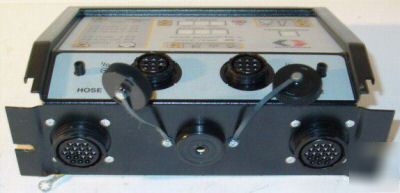

* Control panel for Thermo-flow Model T-7 HotMelt Tank
* Includes all/only items pictured.
___________________________________________________________________________________
Here is some information from the manufacturer on the T7 system itself. Note that this listing is for the CONTROL PANEL ONLY.
The Model T7 is our medium sized hot melt dispensing tank from within our line up and is ideal for many medium to medium high volume applications and will accomodate up to (2) Hoses/Applicators. The Model T7 is loaded with features including a digital touch screen control panel, a variable speed DC gear pump motor, and has a 14 Lb tank capacity along with a 28 Lb per Hour melt rating!
* Hose/Applicator Capacity = Up to (2) Hoses, 32 Ft Total Combined Length
* Tank Capacity = 14 Lbs, Teflon Coated
* Melt Rating = 28 Lbs/Hour
* Application Temperature = Up to 425 F.
* Temperature Control Accuracy = 2%
* Pump Type = Precision Gear Pump, Adjustable from 0 to 300 psi
* Motor Type = Variable Speed DC
* Voltage = 115 VAC, or 230 VAC, 50/60 Hz, Single Phase
* Circuit Breaker Rating = 20 Amp
* Dimensions = 20.5" Long x 12.7" Wide x 15.9" High
* Warm-up Time = Approx. 30 Mins
This is used and in good condition. It is most likely 'unused' stock. Guaranteed to be in proper, working order.
Check out the picture for more information. Feel free to ask any questions. WANT TO REACH ME BY PHONE? Feel free to call me (Trent) toll free (***) 972-1346.
