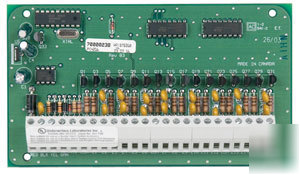

Dsc maxsys 16 output module PC4216
The MAXSYS System can be expanded to provide up to 144 low power outputs to meet the needs of a wide variety of commercial system applications and designs.
PC4216 - DSC Access Control Access Control Device
* each module provides 16 transistor switch outputs supplying up to 50mA @ 12VDC each
* connect up to 9 modules per system for 144 outputs total
* each output programmable to activate for any of 59 options
* outputs assignable to schedules and partitions
* can be used to power/switch graphic annunciator lights and relays
* connection for external tamper supervised by system
* connect up to 1,000' (305m) from control panel via Combus
* operating environment -32 to 122 F (0 to 50 C); 90% RH non-condensing
* current draw 15mA (from Combus) plus power required by outputs
