5 ton demag bridge crane 44'3" x 125'

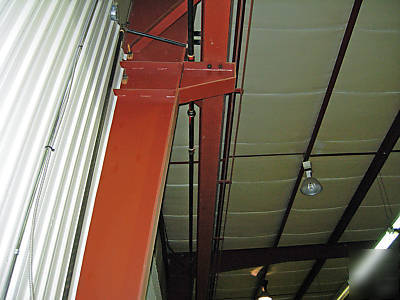

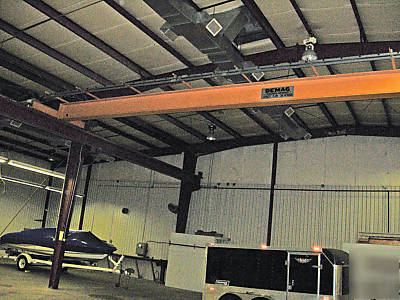

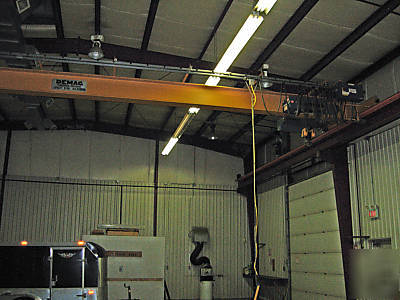

Used Demag Crane (photos below)
* New equipment would cost ~$75K!

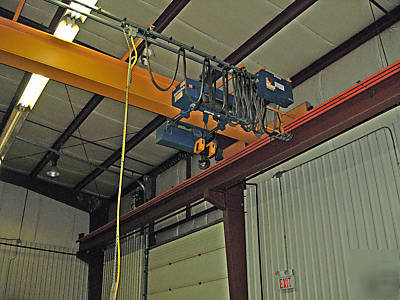

* Equipped with Demag Trolly Type EKDH212H16KN2 4/1 F4
* Span (c/c runway) rails 44ft. 3 in.
* Tubular Rail (KBK 25) 125 ft.
* Main Lifting Speed 18/4.5 FPM
* Bridge Wheel 4 in number 5" diameter
* Power Supply 575/3/60 (volts/ phase/ hertz)
* Control Voltage 110 volts, through step down transformer

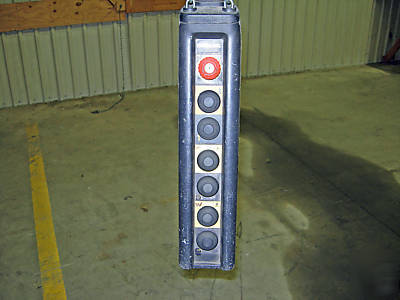

* Pendant push button station remote sliding control 2 Speed (up, down, left, right, north, south)
* Runway Conductors - for 125 ft., through fully protected and insulated figure 8 conductor system, spring shoe type
Call Chris Barber (***)-753-1662 ext 1.
