2005 vermeer SC252 stump grinder

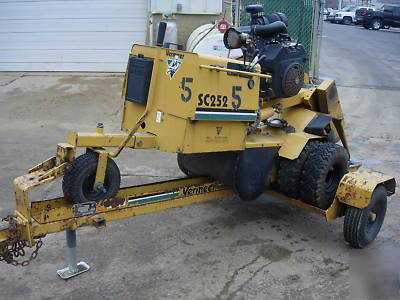

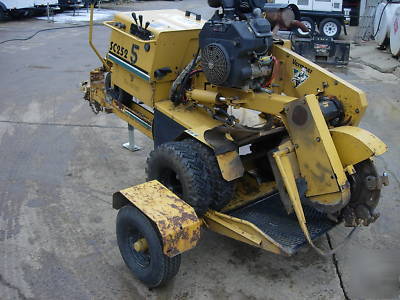

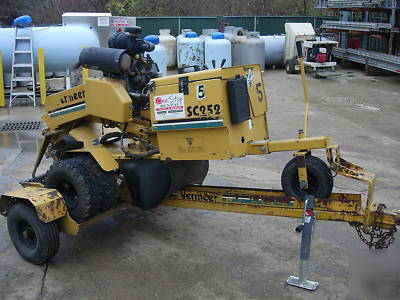

2005 Vermeer SC252 Stump Grinder.
* General Length 115 " 292 cm Width 35 " 89 cm Height in Transport 53" Weight with Gas Engine (2WD) 1040 lbs 471.7 kg
* Main Frame Frame Construction Frame: 3" x 3" x 3/16" Boom: 4" x 4" x 3/16" Hitch Adaptor for TLR-22, 25 Optional pin hitch, safety chains and jack Tires 5.70-8, optional duals Chip Contanment 7.7 cu ft .22 cu m
* Cutter Wheel/Drive Wheel Diameter w/o Teeth 16 " 41 cm Wheel Thickness .5 " 1 cm Wheel Speed 1220 rpm Wheel Swing Arc 40 " 102 cm Wheel Cut Above Ground 25 " 64 cm Wheel Cut Below Ground 13 " 33 cm Tooth Quantity 16 Cutter wheel drivetrain Belt driven, electric clutch
* Capacities Fuel Tank 6 gal 22.71 L
* Hydraulic System Oil Tank Capacity 2.8 gal 10.6 L Engine Make and Model Kohler Command Horsepower 25 hp 20.1 kw Type of Fuel gas
* Electrical Voltage 12 Options Available Options Autosweep, duals, trailer package
