> (16) x 6.5FT ea. pex rails for 1/2" pex tubing (104 ft)
(16) x 6.5FT ea. pex rails for 1/2" pex tubing (104 ft)

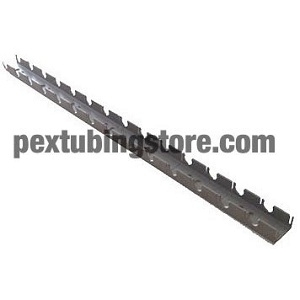

Pack of (16) 6.5ft long PEX Rails for 1/2" PEX Tubing.
Tubing channels are 2" OC - and allow to install
tubing at 6", 8", 10", 12", etc. spacing apart.
Made by Everhot Inc. (part # PXR12)
Pex Tubing StorePex Tubing Store PXR12
The only PEX Rail that accommodates all sizes of PEX Tubing:
3/8", 1/2", 5/8" and 3/4" - of any type or brand (even PEX-AL-PEX)
Pack of 16 rails can cover area of 200sq. ft.
Best price+quality guaranteed 100%.
PEX Rails allow for the most convenient, fast and hassle-free PEX tubing installation. They are durable, non-ridgid, easy to store and handle, very light and are very easy to install.
PXR12 rails are for use with 1/2" PEX or 1/2" PEX-AL-PEX tubing only (5/8" OD).
PEX Rails are commonly used for the following concrete slab PEX installations:
Thin slabs (concrete or thermal mass over wooden subfloor)
Rails can be secured to plywood with regular screws or fasteners.During normal installation, PEX rails are installed in any desired pattern, with 12-18" spacing between them. PEX tubing easily snaps into the channels at any desired spacing (8" OC, 12" OC, 16" OC, etc.)If installed on top of foam board insulation (such as poystrene), PEX staples can be used to secure the rails in place.
Slab over existing slab installations
PEX Rails are mounted to the surface of the existing slab with anchor screws or masonry nails.
Regular Concrete slabs (4-6" thick)
Use nylon or metal wire ties to secure rails every 16-24" to the rebar or wire mesh.
* No tools needed - PXR12 are breakaway at every 4" - trim them by hand to any desired length.
* Use 4" breakaway pieces to secure the tubing U-bends and 90-degree turns - no bend supports needed, 0% materials waste.
* 6.5 ft length means less installation time and labor.
* Non-corrosive, fiber-reinforced materials.
* Suitable for ANY Concrete Slab Radiant Heat project - no need for purchase of additional installation accessories.
* 2" OC tubing channels allow to install PEX tubing in any desired pattern, at any desired spacing (8" OC, 10" OC, 12" OC, etc.).
* Compatible with ALL types (A, B, C) and brands of 1/2" PEX tubing (including 1/2" PEX-AL-PEX and other 5/8" OD tubing).
* In concrete slabs with rebar or wire-mesh reinforcements, PEX rails provide a protection for PEX from rigid metal surfaces.
* Equipped with pre-drilled holes for PEX staples, which can also be used to secure PEX rails to foam board insulation.
For tubing size: 1/2" PEX or 1/2" PEX-AL-PEX
