Greenlee dm-500 precision multimeter test equipment

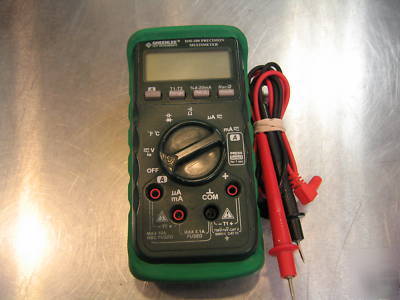

Greenlee DM-500 Precision Multimeter
Autoranging for convenient operation and to save you time.
Record max, min, max-min and average readings and data hold.
Relative offset display mode to see relative changes in measurements.
Frequency, temperature, and capacitance measurements plus diode and continuity tests standard.
Auto power off and low battery indicator.
Voltage Measurement ACV 999.9mV; 9.999, 99.99, 750.0V
DCV 999.9mV; 9.999, 99.99, 999.9V
Amperage Measurement ACA 400.0 A; 40.00mA; 10.0A
DCA 40.00, 400.0 A; 4.000, 40.00mA; 4.000, 10.00A
Resistance 999.9 ; 9.999, 99.99, 999.9k ; 4.000, 40.00M
Capacitance 1.000, 10.00, 100.0 F; 1.000, 10.00mF
Frequency 9.999, 99.99, 999.9Hz; 9.999, 50.00kHz
Temperature K type, -4 F to 932 F (-20 C to 500 C)

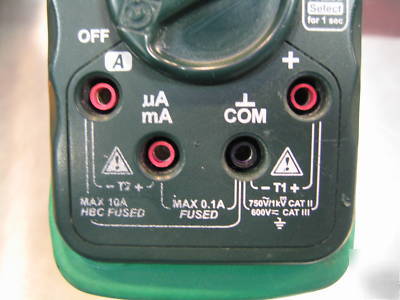

Measurement Category CAT III, 600V; CAT II, 750V AC/1000V DC
