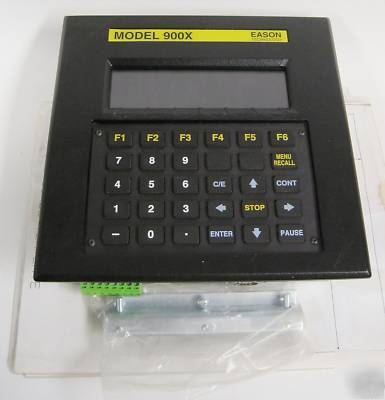

Eason 900X operator interface terminal 8X40 display
Manufacturer: Eason Technology
Item Title: Operator Interface Terminal
The Model 900X is a great terminal for use with Parker Compumotor s X-Language and 6000, and 6K Series products. In addition to the capabilities of Compumotor s RP240, you also get:
* Graphics- Draw lines and boxes
* 8 line by 40 character display
* Backlit display - standard
Based on the hardware feature set of Eason Technology s Model 900 Operator Interface Terminal, the Model 900X responds to Compumotor s RP240 command set. Enhanced features in the 900X that are not included in the RP240 are accessed via the "Quote" command in Compumotor s X language products or the DWRITE command in the 6000 and 6K Series.
Use the Model 900X the same way you use Compumotor s RP240 and take advantage of the additional features available with the 900X. All the programming takes place within the motion controller with no programming to deal with in the Model 900X. A Model 900X can function as a replacement for an RP240* with no modifications to your existing X language or 6000 Series program... but you ll want to make changes to use the added capabilities of the Model 900X. Take an existing program and add larger characters, graphics, etc.
Communications RS-232C/RS422, optically isolated
Display High contrast paper white with graphics capability. Backlight: bright cold cathode fluorescent back light. Size: 8 lines by 40 characters. Characters: 5x8 dot matrix; 0.095" x 0.15" (2.4mm x 3.84 mm)
Keyboard 28 large, full travel keys, rubber elastomer type
* 6 programmable function keys
* Cursor, Menu, Recall, C/E, Cont, Stop, Enter, Pause, and Numeric keys
Environment 32 to 122 F (0 to 50 C) 5% to 95% relative humidity (non-condensing) Designed to NEMA 4 water tight and NEMA 12 dust tight specifications.
Mounting Panel mount or door mount 8.5" x 8.5" x2.44" deep. Rugged cast front housing.
Product Link: http:// /datasheets/900x/900Xdatasheet.pdf
Condition: Used in Very Good Condition with some light scratches. Screen is bright. Instuctions and Mounting Hardware Included.
