300MW+ 650NM red high power burn laser diode module kit
300mW+ 650nm Red Burning Laser Diode Module with Adjustable Lens

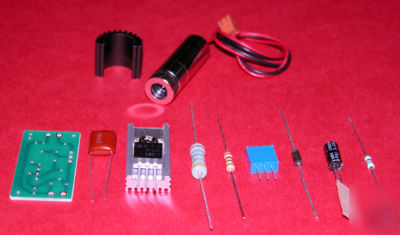

10 part precision Adjustable Constant Current about 100mA to 463mA routed PCB Driver DIY kit with protection circuit included.
Also include Heat Sink for LM317 and Laser Diode Module.
There are countless uses for a small compact Red laser, such as HOLOGRAPHY, LASER LIGHT SHOWS, Medical, etc...
It can light cigarette, punch black vinyl.
Long die open can laser diodes are rated for Class IIIb 300mW+ @650-670nm CW extract from new(never used) DVD Bunner Driver.
This long die open can diode have been probed to be very stable at high power output ranging from 300mW+.
This is long die open can diode so they are extremly fragile therefore must very careful to open lens and must use proper heat sink for high power drive.
The ideal use of this open can diode is 250mW CW at 420mA with acrylic lens( 300mW with glass lens).
This module used acrylic lens but it is possible order optional glass lens at $12 for more power.
PCB can change without notice for improvement.
Constant current driver kit include some safety circuit for laser diode protection- 9 part with Heat sink for LM317 and Laser Diode Module .
Circuits included some filter, max current limit(about 463mW) for protect from over current, capacitor discharge and reverse current protection.
Maximum current limit resistor can remove but I don't recommand because it's make easy kill your diode.
Input Voltage range from 6 V to 20V(eventhough IC can drive 37V but I limit it to 20V for safety)
Place and soldering is very easy!
Don't reply to email, some email not arrive and can erase with many spam mail.
For order glass lens, please "request total" from pay now window before pay.
For See Laser Photo visite http://Zet.Biz
