Hydraulic 3 port flow control excess to tank 1/2" bsp
Hydraulic 3 Port Flow Control Excess To Tank 1/2" bsp

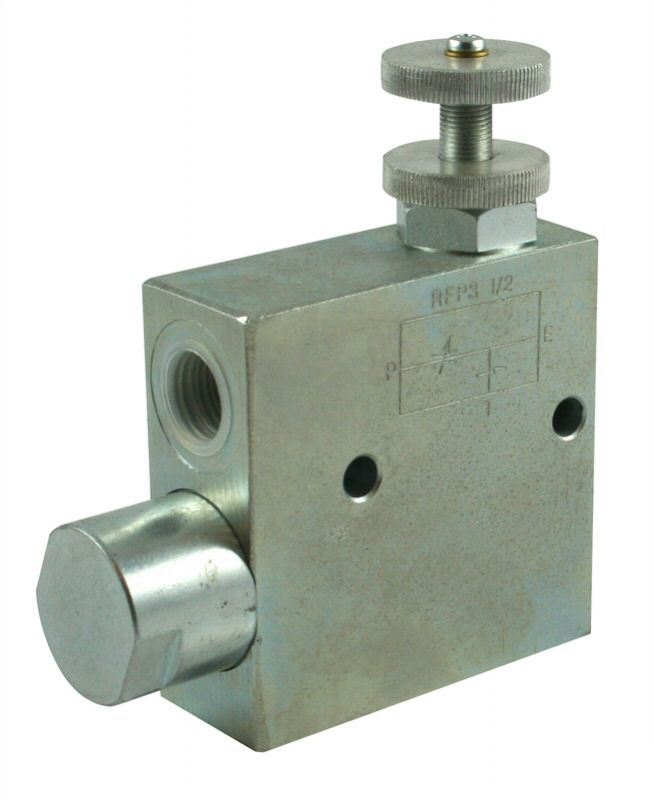

1/2" 3 PORT FLOW CONTROL VALVE WITH EXCESS BACK TO TANK - V1120
This valve enables to keep "P" flow constant to a certain setting, independently of the required pressure or the inlet flow of the valve. Exceeded flow is drained in "T" (tank).
* Max adjusted flow 50 l/min
Applications: Connect E to the pressure and P to the line where flow adjustment is needed. Connect T to the tank. To adjust inlet pressure in P screw in or out, hand wheel, after loosening the locknut.
