Auto range digital clamp meter,dual display,multimeter

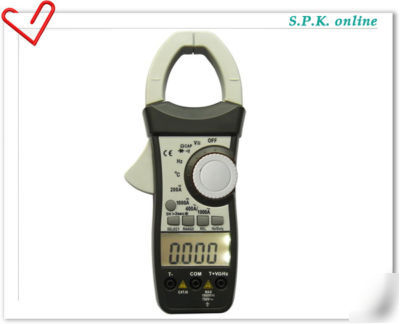

Auto Range Digital Clamp Meter(870C)
* Display: 3 3/4 digit LCD with a max. reading of 3999.
* Range control: Auto range control.
* Zero adjustment: Automalic.
* Auto Power Off: 30 minutes after stopping the switch or no push button, the meter automatically enter to
power off mode.Push button or run switch, auto power off disable.
* Safety Standards: The meter is up to the standards of IEC1010 Double Insulation,
Pollution Degree 2, Overvoltage Category
* Operating Environment: Temperature 32 104 F(0 40 ), humidity 80%RH.
* Storage Environment: Temperature -4 140 F(-20 60 ),humidity 90%RH.
* Power supply: 9V Zinc-carbon battery.
* Dimension: 225(H) 77(W) 45(D)mm.
* Weight: Approx. 330g (including batteries).
Accuracies are (% of reading +numder in last digit) at 23 5 , 70%RH.
Overload protection: 1000V DC/750Vrms AC
Impedance: 10M More than 100M on 400mV scale
Average sensing, calibrated to rms of sine wave
Overload protection: 1000Arms within 60 seconds
Overload protection: 250V DC/250Vrms AC
Range of input voltage:1.5V~10V, If input voltage over range,need adjust
1.2.8 Temperature(NiCr-NiSi sensor)
1.2.9 Diode and Audible continuity test
* TO USA: USD19.9 by EMS or DHL,4-7 days
* TO Other Countries: USD24.9 by EMS or DHL,4-7 days
