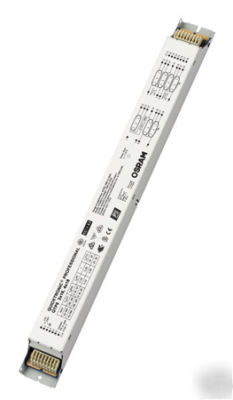

Osram electronic ballast for T8 tube 3X18W / 4X18W QTP8
OSRAM ELECTRONIC BALLAST For T8 tube 3x18W / 4X18W QTP8
* Supply voltage: 230 to 240 V
* Mains frequency: 0, 50 to 60 Hz
* Lamp start: Lamp start within 2 s with optimum electrode preheating. If there is a emporary interruption in the power supply (< 0.5 s) the lamp will start within 0.3 s
* The battery voltage may drop to 154 V. The lamps must be ignited at over 198 V
* Same luminous flux with direct and alternating current
* Single-lamp operation possible for 2 lamp ECGs
* Automatic restart of replacement lamps
* Energy Efficiency Index EEI = A2
* Approval marks: ENEC 10 sign, VDE sign, EMV-sign
* Lamp operation to EN 60929
* RI suppression: to EN 55015, EN 55022
* Line harmonics: to EN 61000-3-2
* Three or four-lamp versions can be used for emergency lighting (DC operation)
* Model: QTP8 3X18 ; 4x18/230-240
* Lamp wattage : 3x16W / 4x16W
* Luminous flux : 3x1300 lm / 4x1300 lm
Cater to Tube Watt: 3x18W ; 4x18W
Our Ref. G600/HD123/PM165/OP11
