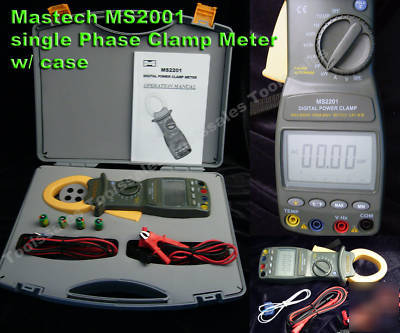

New mastech single phase 1 power factor clamp meter
This computerized power meter measures 9 parameters: Voltage, Current, Active Power, Power Factor, Apparent Power, Reactive Power, Active Energy temperature and Frequency. It also measures Single-phase circuit with true RMS value.
Very small and light weight, yet powerful power measurement unit. This Digital clamp meter design especially for Single-phase power application, the calibrated microcomputer will display the following reading by select hardware function button:
Voltage, Current, Active Power, Power factor. Apparent Power, Reactive Power, Activ Energy and Frequency.
Capable TRUE RMS value measurement, non-sinusoidal AC current input signal can accurately measure the active current.
High accuracy , user friendly design with fast auto-range.
Measure five power parameters of each phase and total power value in three-phase measurement mode respectively.
Minimum current of active energy measurement is 0.5A, it can measure expending energy per hour of general electrical equipment.
Measurement and display active power, apparent power, power factor, reactive power and active energy.
Multifunctional button control, analogue scales bar display fluctuation and digital read out.
Interrupt Power saving Active energy measurement mode.
Custom protect case with all test lead and English manual, CD.
Accuracy %reading + digi. 18-28C 80% test voltage/current 45Hz -65Hz
