New jorestech - pallet stretch wrapping machine wrapper
JORESTECH SEMIAUTOMATIC STRETCH WRAPPING MACHINE
Wrap Pallets Quickly, Securely and Cost-Effectively
Advantages of Stretch Wrapping :
The most secure way to package your load
Product can be hidden from view with the use of opaque films
Increased protection form the elements, including UV rays
Stretch must be cut for product to be extracted
Machines use stretch films much more efficiently than if done by hand
No operator fatigue as stretch process performed automatically
Excellent product presentation
* Extremely Rugged All-Metal Construction
* Monoblock Chassis with Full Deck Plating
* Rated for 4,400 lbs (2,000 Kgs) Max Pallet Weight
* Low Profile Type Turntable [Height from ground 3.5 (90 mm)]
* Telemechanique Brand Switches and Electronics
* Automatic Load Height via Photo Sensor
* Meiwa Brand Programmable Logic Controller (PLC)
* Top and Bottom Wrap Counters
* Electrostatic Powder Coated Finish
* Dual Chain in-tower Drive System

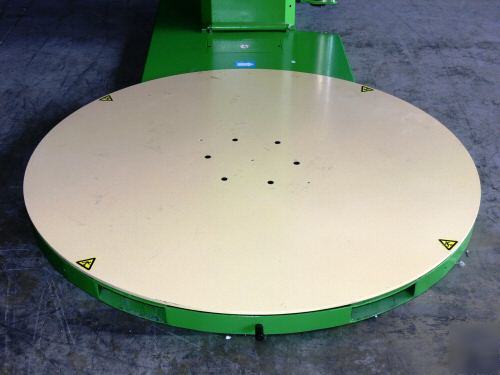

* Turntable Diameter: 60 in (1530 mm)
* Max Pallet Height: 85 in (2150 mm)

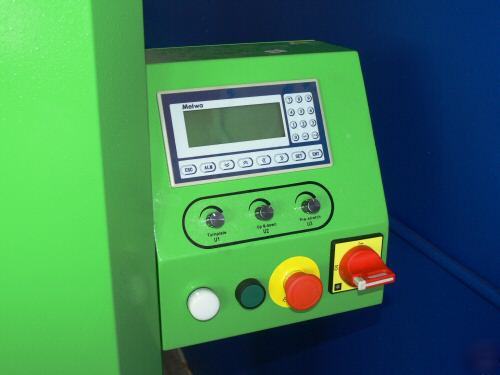

PLC Alphanumeric Display (multilingual)

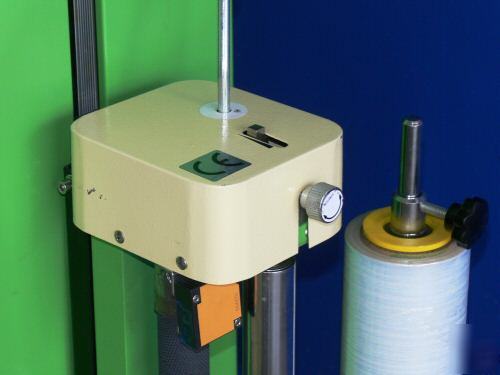

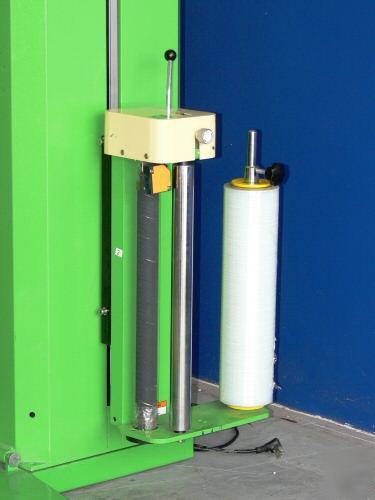

Stretch Head Vertical Speed Adjust
Electric Requirements: 110V/50-60Hz
Machine Dimensions (Assembled): 106 (2700mm) x 60 (1525mm) x 98 (2500mm) H, Plus Ramp
Machine Weight: 1100 lbs (500 kg)
Packaged Dimensions: 118 (3000mm) x 63 (1600mm) x 41 (1041mm) H
Packaged Weight: 1287 lbs (585 kg)
