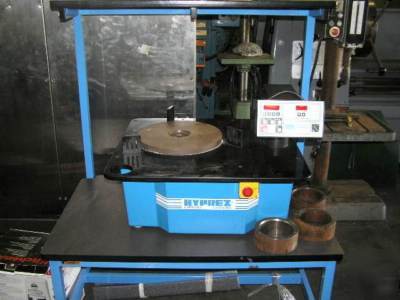

Hyprez model 15 LM115 lapping system
HYPREZ MODEL 15 LM115 LAPPING SYSTEM

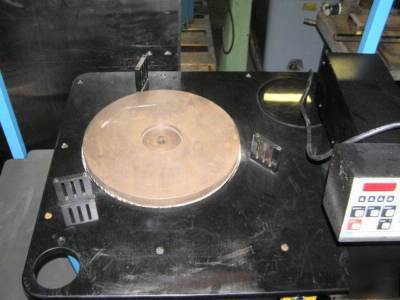

Lap Plate......................15" od x 4" id
Conditioning Rings.............7" od x 5-1/2" id
Pressure Plate Weights.........5-7/16" od x 1-1/2" thick, 9lbs
Abrasive Slurry Pump System....6 QT Capacity
Variable Speed Drive...........0 to 120 RPM
Lap Plate Motor................1/2 hp
Electrics......................115v, 1ph
Dimensions.....................31" x 28" x 24", 400lbs

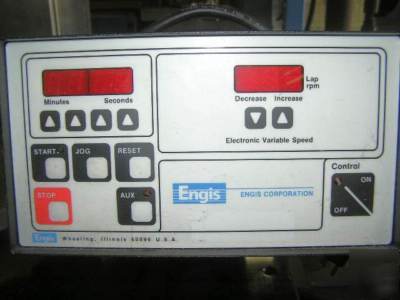

Engis Touch Panel Digital Read Out
Corrosion Resistant Parts Table

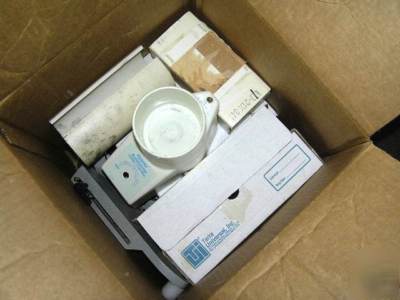

Hyprez EM-1 Minimizer Spray Unit
