> Pic microchip pic-P40 prototype board with components
Pic microchip pic-P40 prototype board with components

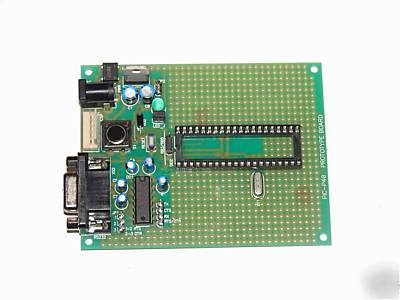

Click for view in large resolution PIC-P40 prototype board: top side view
Click for view in large resolutionPIC-P40 prototype board: bottom side view
Soldered PIC-P40 prototype board for PIC Microchip controllers in 40-pin DIL (DIP) case
With this board you can develop and prototype with any of Microchip's 40pin PIC microcontrollers. The RS232 driver on board allows easy connection with PC or other embedded hardware. The board have User button and status LED. The bridge rectifire allow this board to be powered with both AC and DC power supply adapters. PIC-P40 supports both 3.3V low power and normal 5V operation.
* ICSP/ICD connector for programming with any PIC programmer or debugging (EXTRA-PIC, JDM PIC, ICD2, PICkit2 or other),
* DIL-40 microcontroller socket
* selectable +3.3V / +5V power supply voltage regulator
* Four mounting holes 3 mm (0,13")
* FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print .
* Dimensions 100x80 mm (3,9x3,15")
* TOP side component placement
* BOTTOM side component placement
* Blinking LED ( source HEX)
