Honeywell micro switch 972/973 proximity switch
Honeywell MICRO SWITCH 972/973 Proximity Switch

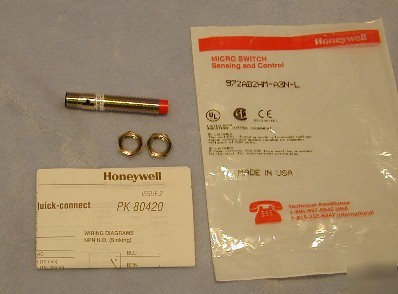

Honeywell MICRO SWITCH 972/973 Series Quick Connect Proximity Sensors. This is a new Honeywell MICRO SWITCH 972/973 Series Quick Connect - Proximity Sensors PK 80420 (red) 972AB2HM-A3N-L 3-Wire DC Supply Voltage 10 to 30 VDC- Load Current 200 mA max.- Leakage Current 50 uA max.- Voltage Drop 1.5 V max- Current Consumption 12 mA max- Repeatability- Shielded +/- 1%- Unshielded +/- 3%- Hysteresis 2-15%-Short Circuit Overload Transients Sealing* IP67, NEMA 4, 6, 6P, 13- Temperature Range -25 to +70 Degrees C (-13 to 158 Degrees F)- Application Note: Enclosures are based, in general, on the broad definition outlined in NEMA standards. Therefore, it will be necessary for the user to determine that a particular enclosure is adequate when exposed to the specific conditions that might exist in intended applications.
