Atmel avr ATMEGA128 microcontroller board development

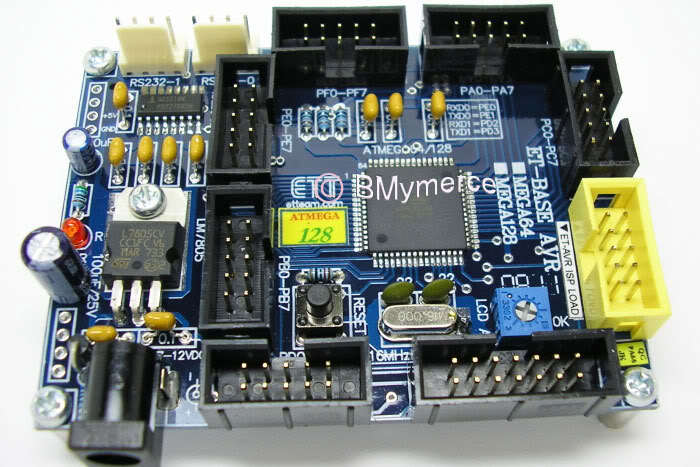

ATMEL AVR ATMEGA128 Development Board
The board includes AVR ISP Parallel Programmer for easy updates and program changes. All port pins on the microcontroller are brought out to standard IDCC Headers for easy connection. A standard 14-pin LCD connection is also available for character LCD's. Two UARTs are included as standard on the microcontroller for computer interfacing and data transfer. A MAX232 is included for level shifting of the UART signal, A reset button is mounted on the board together with the necessary rectifier for the power supply together with a power-on LED. All necessary crystals and support components for the microcontroller are pre-installed and the board is delivered ready to run.
Includes Powerful Atmel ATMega128 Microcontroller with 128kb Internal Flash Program Memory.
Operating Speed at 16MHz with up to 16 MIPS.
In-Circuit Programming via AVR ISP Connector.
A massive 48 I/O points with easy to connect standard IDCC Connectors.
2 RS232 Connections with MAX232.
LCD Connector with Contrast Adjustment.
8 Channel 10-bit A/D Convertor.
Two 16-bit Timers with Two 8-bit Timers.
Power LED and Reset Button.
Ideal as an Interchangeable Controller for Embedded Systems.
1 ATMEL AVR ATMEGA128 (include AVR ISP Parallel Programmer & CD Document)
* ATMEL AVR ATMEGA128 Development Board.
* AVR ISP Parallel Programmer.
