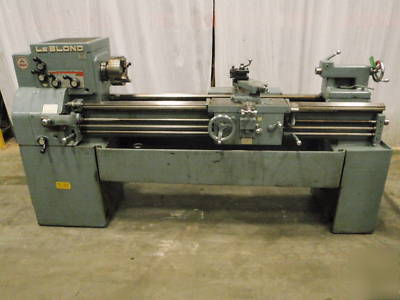

7035 leblond 15" x 42" lathe 1-17/32" hole 4-jaw chuck
Swing over bed and carriage wings 15
Spindle Speeds, range in rpm 45-1800
Spindle, size of center, Morse No. 3
Spindle, diameter of hole, straight 1 17/32
Spindle nose, taper key drive, size L-0
Bearing surface, square inches 62
Ranges of feeds per revolution .002 to .120
Range of threads per inch 4 to 224
Net weight, approx. 2,300 lbs.
(with taper attachment) 66 x 40

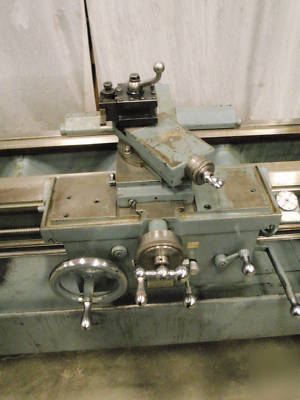

Equipped with 4 Jaw chuck, tailstock, tool post, and 2 axis Mitutoyo DRO.
