New 2" belimo globe valve with NM24-sr 24V actuator

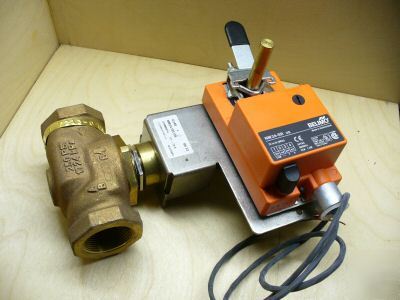

new Belimo Globe Valve with NM24-SR 24v Actuator
Valve Seal is labelled 6250-0048-VB-7213-000-4-11
Actuator NM24-SR, 24 volt, DC, Valve and Actuator Specs are below photos.
Photos may be of a 1.5" valve, this listing is definitely for a 2" valve.
Actuator Technical Data NM24-SR US
Power supply 24 VAC, 20%, 50/60 Hz 24 VDC, 10%
Transformer sizing 3.5 VA (Class 2 power source)
Operating range 2 to 10 VDC, 4 to 20 mA
Input impedance 100k? (0.1 mA), 500?
Electrical connection 3 ft, 18 GA plenum rated (UL CL2P) cable,
Overload protection electronic throughout 0 to 95 rotation
Torque (Note 1) min 70 in-lb (8 Nm)
Direction of rotation reversible with Switch L-R
L = CW with an increase in voltage
R = CCW with an increase in voltage
Position indication clip on indicator
Manual override button on actuator
Angle of rotation 0-95 adjustable stops
Running time (35-95 ) 150 seconds independent of max. angle of
Running time (0-35 ) 0-150 seconds proportional to max. angle of
Humidity 5 to 95% RH, non-condensing
Ambient temperature -4 to +122 F (-20 to +50 C)
Storage temperature -40 to +176 F (-40 to +80 C)
Mounting position not sensitive to position
Housing material UL 94-5V (flammability rating)
Noise level less than 35 dB (A)
Agency listings UL 873 listed, CSA C22.2 No.24 certified, CE
