Laboratory bath chiller brinkmann lauda model RM6 -

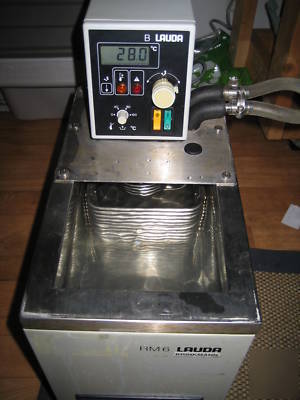

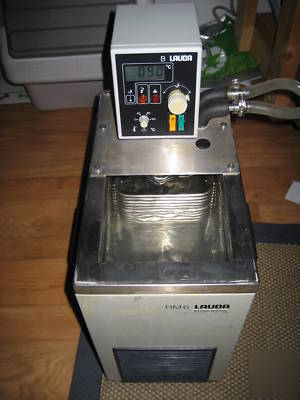

Used Lauda Water Bath Chiller - RM6 (-20 to 120 C) - WORKS GREAT! NO RESERVE!
keep your experimental apparatus at a set temperature (+/- 0.1 degree Celsius) or use chiller for making cheese or lager beer!
cleaning out my crap and want to see it go to a good home/laboratory.
note - chiller is missing the little metal lid that goes over the reservoir, it might be around somewhere, but I haven't seen it in awhile...

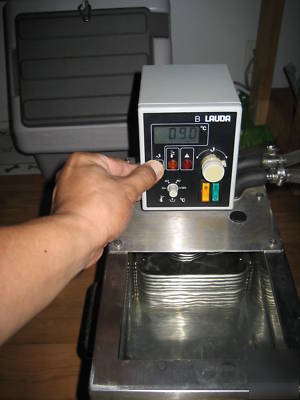

- - no manual - using bath controls is a bit odd (lots of icons/pictograms), but makes sense once you fiddle with them , will send instructions that I've figured out.
gleaned the following off the interwebs...
RM Refrigerating Circulators
The RM Series of refrigerating circulators
provides precise temperature control and
maximum cooling capacity to closed-loop
systems. Compact Model RM6 features a 6L
bath reservoir and a cooling capacity of 440
watts (1500BTU/hr at 20 C) in a narrow
7.9-inch width. Both RM6 models are
supplied with a stainless steel bath cover.
Model RM20 provides 475 watts (1620
BTU/hr at 20 C) cooling capacity and a large
20L stainless steel reservoir for immersion
applications. An 11.8 x 13.8-inch work area can easily accommodate large
flasks and test tube racks. All RM models are supplied with a convenient
bath drain and sturdy carrying handles. Bath liquid contacts only stainless
Energy-saving temperature control.
Proportional Integral Differential (PID) temperature control saves energy by
adjusting the 1000-watt heater power to correspond with effective demand,
and compensates for temperature drift to achieve the highest level of
Below 40 C, the refrigeration system operates continuously. Above 40 C the
compressor can be shut off manually for more efficient heating. All Lauda
RM models use R-134a, an environmentally safe, CFC-free refrigerant.
To meet most application needs, RM Refrigerating Circulators are offered
Unique combination of reliability and affordability.
Temperature range from -20 to 120 C
High-resolution LCD display of actual/set
Adjustable over-temperature/low-liquid-level shutoff
