Rohde & schwarz SMV03 signal generator, 3 ghz, r&s

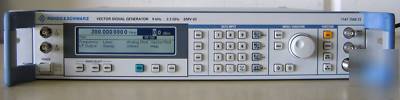

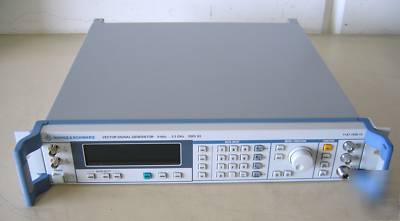

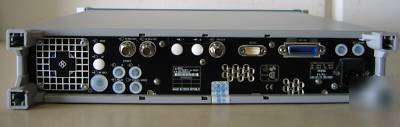

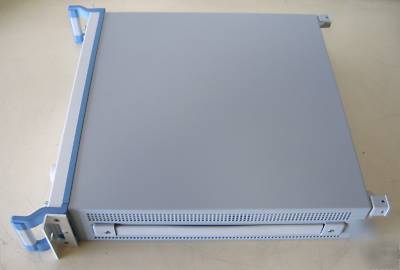

R&S SMV03 Vector Signal Generator
The Rohde & Schwarz SMV03 Vector Signal Generator is based on the successful analog Rohde & Schwarz SML03 Analog Signal Generator and features the same excellent technical characteristics. It comprises an additional broadband I/Q modulator which is able to generate any digital signal in conjunction with an external I/Q source. The R&S SMV03 Signal Generator generates all kinds of I/Q modulated signals using the integrated vector modulator. Owing to its wide I/Q bandwidth of 50 MHz, the SMV03 is also optimally suited for applications using high data rates such as WLAN standards. Signals to digital standards can be easily generated in conjunction with an external I/Q source like the Modulation Generator AMIQ and the associated WinIQSIM simulation software.
Features and specifications of the R&S SMV03 Signal Generator include:
* Frequency range from 9 kHz to 3.3 GHz with 0.1 Hz resolution
* High output level of +13 dBm with a deviation <0.5 dB
* Interruption-free level setting by means of electronic attenuator
* High spectral purity < 122 dBc (1 Hz) at f = 1 GHz and 20 kHz carrier offset
* Frequency and level setting time <10 ms
* Wide I/Q bandwidth of >50 MHz (3 dB), 100 MHz RF bandwidth for f > 500 MHz to 3 GHz
* Simultaneous AM, FM/ M, pulse and vector modulation
This R&S SMV03 is available for RENTAL - Call (***) 806-6600 if you would like to RENT this item
