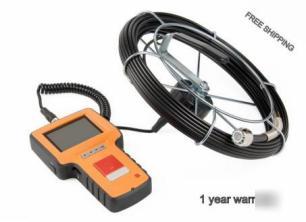

Push camera for pipe and pipeline inspection, sewer
Push Camera for pipe and pipeline inspection, sewer
25M (82') probe, for industrial lines, pipes, duct work
Medit s Push Camera video borescope systems (PPC) are great for a wide range of applications which require a large flexible video probe to inspect deep down into pipes, pipelines, duct work, or industrial lines. These units give you clear color image of the inspection area, with the ability to easily capture images and video to an SD memory card. The 26mm (1 ) diameter is great to inspect wider pipes, machinery or castings, ducts, wells, or disposal areas, and industrial lines.
The live color image is provided by a CMOS video camera chip in the tip, with a wide angle 107o field of view, illumination comes from 12 LED lights positioned around the camera chip, protected by a solid steel head. Live images are displayed on the portable monitor which features a 3.5 TFT LCD screen, with 320x240 pixel resolution, a skid-proof, anti-shock, ergonomic design, large image and video capture buttons for operation with gloves on, a 1GB SD memory card for file capture, a dimmer for the LEDs lights, video output to a TV monitor, a USB port to transfer captured images and video, and a rechargeable li-polymer battery for up to 4 hours of portable use.
26mm (1 ) Diameter flexible insertion probe
3.5 Color LCD monitor with Video output, file playback, and USB to transfer files
Easy image/video capture to an SD memory card
25 meter (82 ) long flexible probe
12 LED lights to illuminate the inspection area
Rechargeable battery for portable use
Angle of view: - 0 o, unless with mirror tips
Battery: Rechargeable Li-Polymer (3.7V)
Carry Case: 23 x 15 x 4 inches, rugged hard sided carrying case.
CMOS image sensor: 2.2mm chip (Resolution (Dynamic/static) 640x480)
Depth of view 5cm~ 60cm, or more in well lit areas
Display: 3.5 TFT LCD Monitor 320x 240 Pixels
Image Storage/ Video Recording: JPEG (640x480) / ASF (320x240)
Insertion Tip: 26mm (1 ) diameter
Insertion tube length: 25M(82')
Interface: Mini-USB 1.1/ AV out
Light source: 12 White LED (8700 Lux at 20mm)
Monitor Dim: 207mm x 117.5mm x 37mm (Hand area 79mm Wide)
Operating temp: Tip -10 5oo C (-14 122 oF)
Power: DC5V, 3.7V Rechargeable battery
Recording Format: SD Memory Card (Up to 16GB capacity)
Waterproof: IP57 (Insertion tube and tip)
White Balance: Automatic (2500K -9500K)
Working length: 3M (9.8'), 10M (33') or 25M(82')
Probe diameter: 26mm (1 ) diameter
Optical system: CMOS image sensor: 2.2mm chip (Resolution (Dynamic/static) 640x480)
