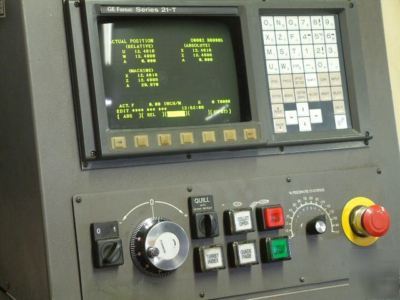

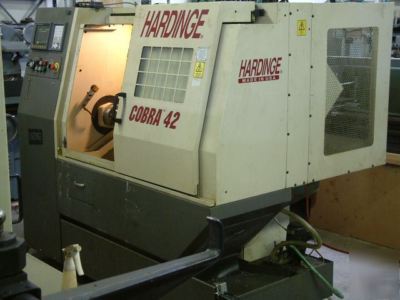

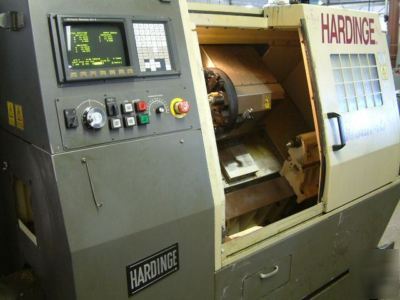

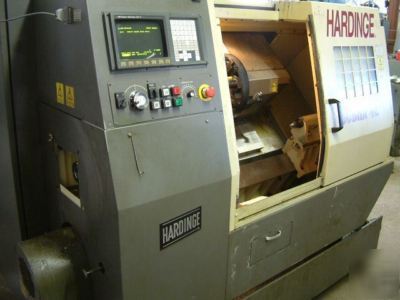

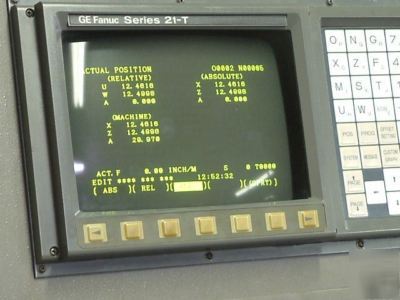

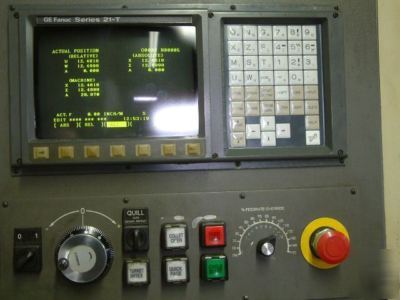

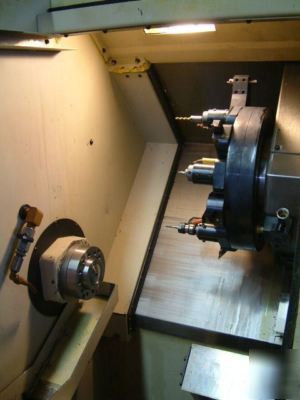

Nice hardinge cobra 42 cnc lathe fanuc 21T control
SPINDLE CONFIGURATION ANSI A2-5"
16C COLLET (THROUGH CAPACITY) 1.625"
TURNING LENGTH WITH COLLET MAX. 14"
HAND WEIGHT WITH DEVICE AND PART 75 POUNDS
AC DIGITAL SPINDLE DRIVE SYSTEM
HORSEPOWER RATING (INTERMITTENT) 10 HP
HORSEPOWER RATING (CONTINUOUS) 7.5 HP
SPEED RANGE (1 - RPM STEPS) 50 - 5,000 RPM
SWING DIA. OVER UPPER WAY COVER MAX. 21"
Z AXIS TRAVEL WITH COLLET MAX. 14"
X AXIS TRAVERSE RATE MAX. 400 IPM
Z AXIS TRAVERSE RATE MAX. 630 IPM
SQUARE SHANK TOOL SIZE MAX. 3/4"
ROUND SHANK TOOL SIZE MAX. 1-1/4"

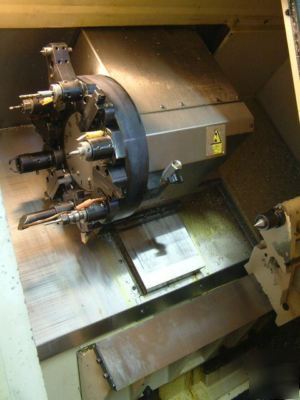

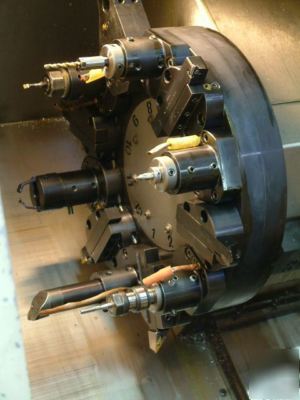

INDEXING TIME STATION TO STATION .5 SEC.
PART SURFACE FINISH 12 MIRO-INCH
TURRET INDEXING REPEATABILITY .000050"
