New wj 906646 watkins johnson 13 & 25 card board

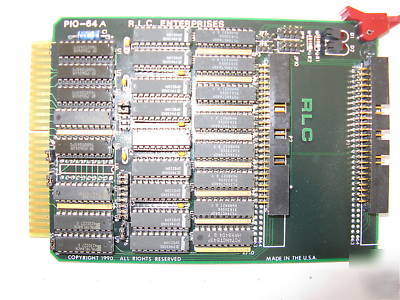

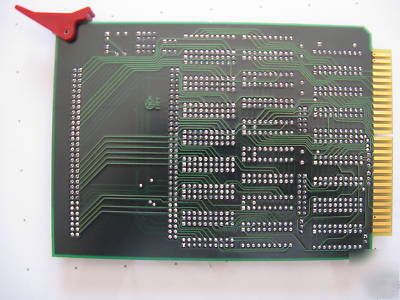

Watkins Johnson circuit board card for the model WJ999, WJ1000 & WJ1500 series of deposition tools.
This is the 48 channel input output I/O card WJ part number 906646 or 906646-001
This card is the 25 card in the WJ-955 temperature controller cardcage and is cabled to two OPTO 22 cards downstream.
This card is the 13 card in the WJ-952 gas controller cardcage and is cabled to two OPTO 22 cards downstream.
This card can be configured for either gas or temperature controller use. The schematic included has the primary configuration table detailing the jumper settings.
This card is original RLC (R.L.C.) mfg who made the card for WJ, not refurbished or second source.
Included with the card will be:

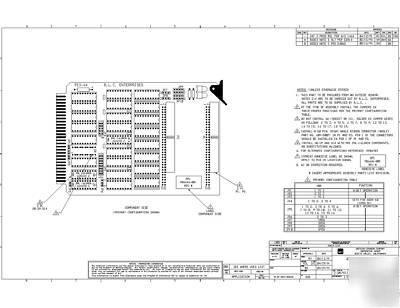

-the PDF version of the card CCA 906646 on optical disc and additional hard printed copy
-the alternate configuration which has the jumper position configuration table on the CCA copy
-there are no board calibration procedures for this card
-hard copy of schematic page 5 & 6 showing cable connections to this card and card cage slots
This card from WJ is $5,445.00 at current price book:
CARD,CONFIGURATION,INPUT/OUTPUT,48 CHANNEL- APL
Watkins Johnson was formerly SVG, formerly ASML formerly Aviza and now a division of Sumitomo
