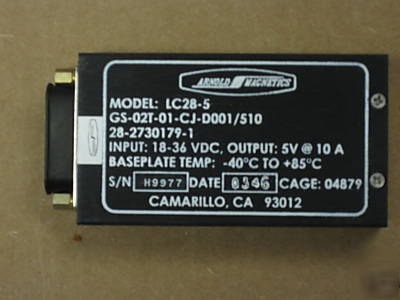

Arnold magnetics #LC28-5 dc converter mil# 28-2730179-1
(5) Arnold magnetics Mil Spec DC/DC Converter
These are all brand new never used.
-200Khz fixed Frequency Operation
-on/off logic control (inhibit)
-Remote Sense compensates up to 0.5V
-Low output Peak-Peak Noise Filter
-MIL-STD-461E Input EMI filter
-MIL-STD-704A, MIL-STD-1275A (100V for 50MS)
PARD(Ripple/Noise) DC- 20Mhz-20mv
Over Current set point- 10.5-10.0A
Short Circuit Current- 6A- 12A
Load Step Recovery(1/2 to FL)- 100us
Isolation- 200vdc input to output and Input to Case- 100vdc output to Case
EMI Filtering- MIL-STD-461E, CE101 and CE102 on the input
Size- 0.72"H x 1.83"w x 3.25" long
