Angle plate moore machinist precise grind 1 of set of 4

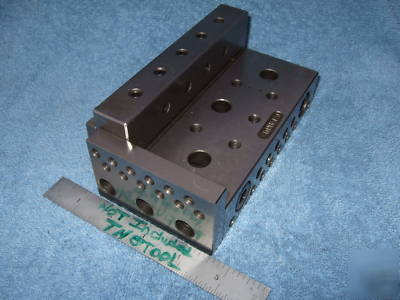

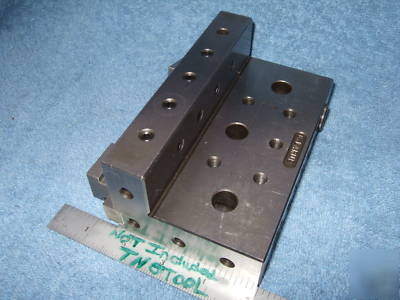

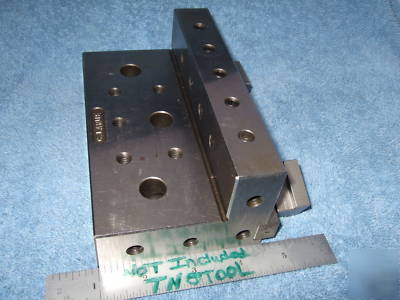

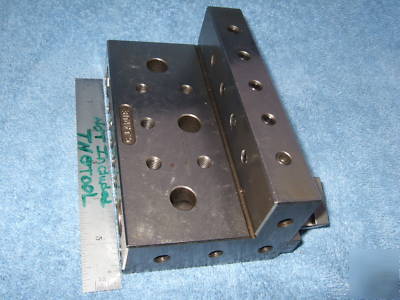

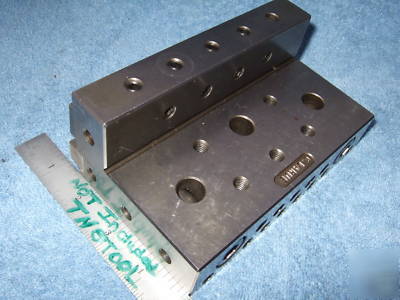

ANGLE PLATES (1) MADE OF HARDENED AND PRECISION GROUND TOOL STEEL BY AMERICAN TOOLMAKER NOW RETIRED FROM THE MOORE JIG-GRINDER HE OPERATED FOR GM. RECENTLY GROUND ALL OVER USING HERMANN SCHMIDT TOOLING AND A BALL-WAY SURFACE GRINDER. PLATE HAS REMOVEABLE KEYS TO BE USED ON MOORE JIG-GRINDER. MAKE NEW KEYS IT WILL BOLT TO BRIDGEPORT OR WHATEVER YOU HAVE! I HAVE MATCHED SETS OF THESE BUT ONLY 1 IS FOR SALE HERE. OTHERS TO BE LISTED SOON!

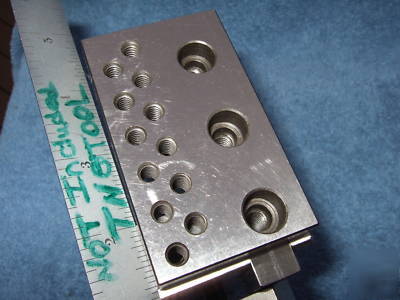

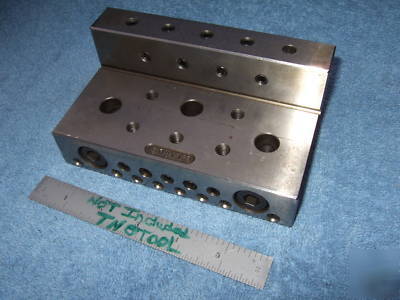

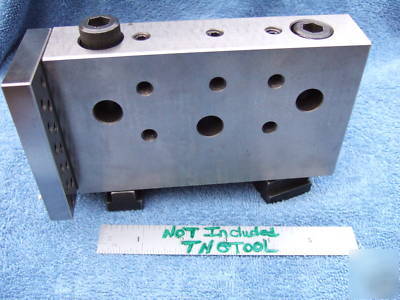

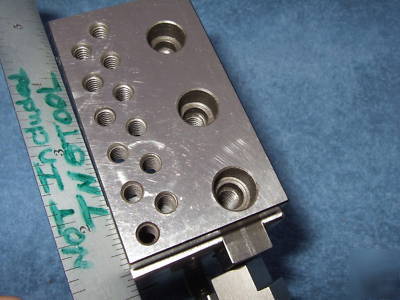

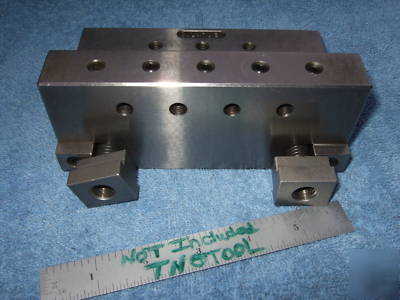

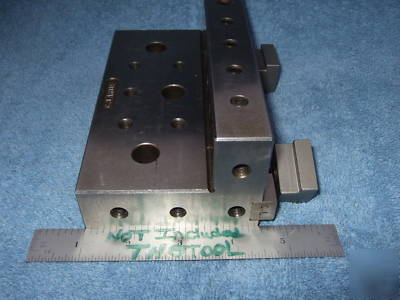

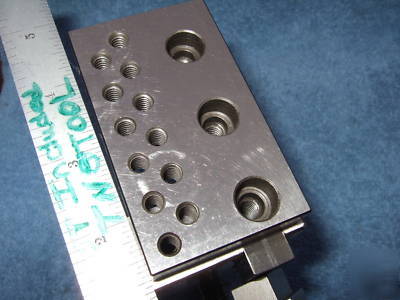

ANGLE PLATES MEASURE 5.983" WIDE X 3.985" LEG x 2.480" TALL WITH (2) .563" wide KEYS AS SHOWN. (27) TAPPED HOLES 5/16" x 18 and (8) 1/4" X 20 across top TO USE AS NEEDED. BLOCK ALSO HAS (2) DRILLED 9/16" AND COUNTER-BORED 25/32" HOLES FOR 1/2" X 13 SOCKET HEAD CAPSCREWS TO HOLD T-NUTS AS SHOWN. THESE ARE 4.0" BETWEEN CENTERS. THERE ARE ALSO (3) 17/32" CLEARANCE HOLES IN LARGEST FACE. LEGS ARE 1" AND 1-1/4" THICK MAKING THESE VERY BEEFY PLATES! EACH HAS NO DAMAGE OR CRASHES ON THEM. ALL HAVE TAPPED HOLES THAT HAVE SET-SCREWS INSTALLED AS SHOWN. PLATES ALSO HAVE END STOP PLATES THAT ARE FULL OF TAPPED HOLES. ABSOLUTELY GEORGEOUS TOOLING MADE BY ONE OF THE BEST! EACH PLATE HAS AN END PLATE THAT HAS (12) 1/4" X 20 TAPPED HOLES AND 3 DRILLED 11/32" HOLES WITH 1/2" COUNTER-BORES FOR 5/16" X 18 SOCKET HEAD CAPSCREWS AS SHOWN. NONE NICER THAN THESE EVEN IN MY STORE!
EXCELLENT USEFULL BLOCK FOR SURFACE GRINDER OR BRIDGEPORT LIGHT MILLING WORK.
