26660530 | 18“ 12 spd 3PH comb drill & mill mach

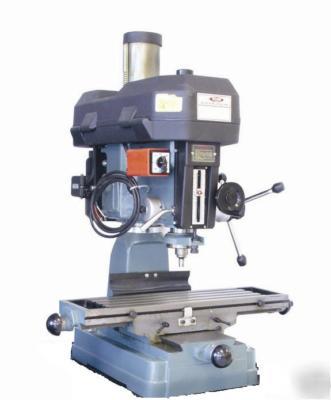

26660530 | 18 12 Speed 3PH Combined Drill & Milling Machine
* Hinged belt cover allows fast speed changing.
* Heavy-duty tapered roller bearings support the spindle.
* Positive and easy-to-read internal depth gage.
* Satin finish, easy-to-read dials.
* Number of speeds ... 12
* Drilling capacity 1-1/4
* Face mill capacity . .. 3
* End mill capacity .. 3/4
* Spindle travel ... 5
* Cross travel . . 7
* Long travel . .. 19-3/4
* Spindle distance to table . . 18
* Table size . .. 28-3/4 x 8-1/4
* Spindle taper .. R8
* Column diameter . .. 4-1/2
* Range of speeds .. (12) 125-2,500 RPM
* Motor .. ... 2 HP
* Voltage ... 230/460V, 3 Prewired 230V
* Weight . . 660 lbs.
* drill chuck with key & arbor.
The manufacturer is Frejoth International
The manufacturers item number is RF-30 3 Phase
We offer 1 year warranty on parts and 90 day warranty on electrical.
