Trebor di water heater model #2254 54 kw

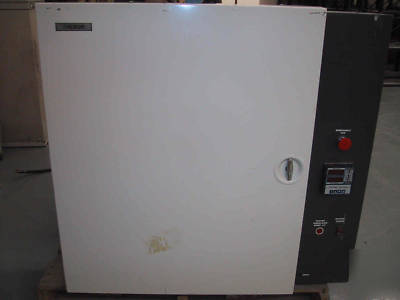

Trebor DI Water Heater Model #2254 Serial #00153 3 GPM
The Model 2200 Series feature:

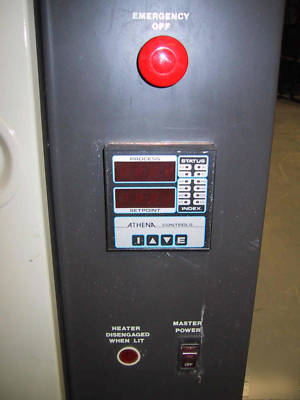

Safety protection for over temperature and low water pressure
Single source power with front mounted circuit breaker
Low watt density and small thermal mass for rapid temperature response
Modular design for ease of service, low maintenance and maximum up-time
Units can be interconnected for high capacities
All wetted parts are fluoroplastic (Teflon or PVDF)
Power: Electrical 1 1/4" conduit connector 480Volts 3 phase 60 Hz 80 Amps 54 KW
Utilities: Cold D.I. Water Inlet- 3/4" FNPT Hot D.I. Water Outlet- 3/4" FNPT
DI Water: Output 3 GPM Pressure (inlet)- 30 psi minimum 60 psi maximum
System temp control range +/- 2 C System Pressure drop 3 psi
Dimensions: (Wall mountable) 38"W x 36"H x 12 5/8" D 200 lbs
Materials: All fluoroplastic wetted parts

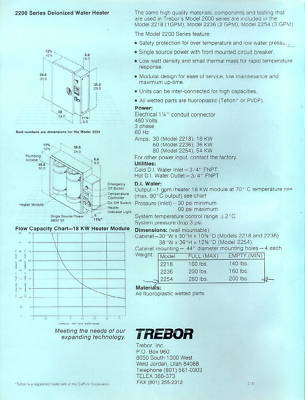

Full Manual is included with unit.
