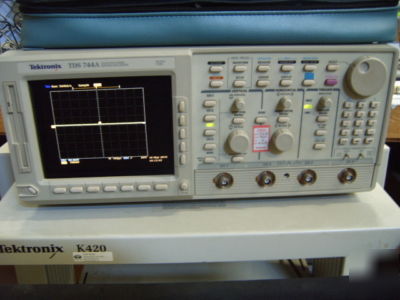

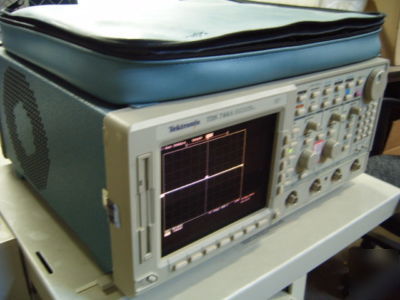

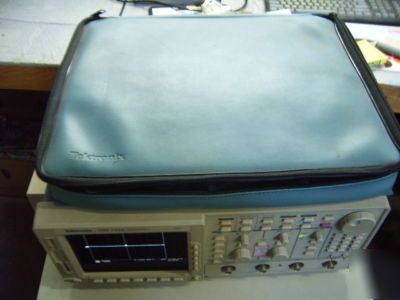

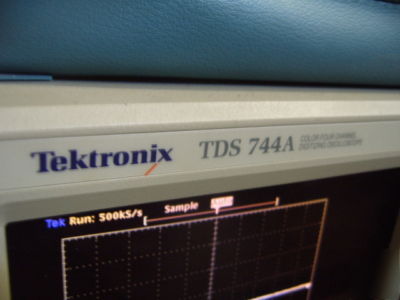

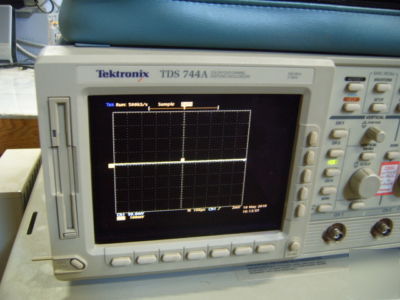

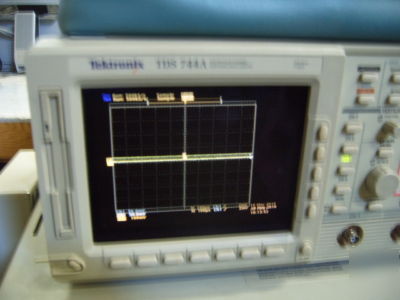

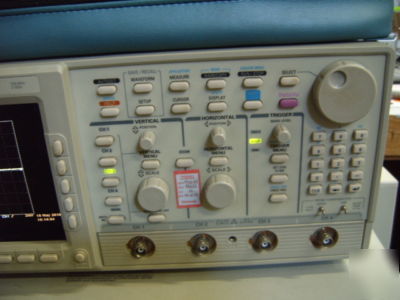

Tektronix TDS744A digitizing oscilloscope 500MHZ 4 ch


The TDS744A 4 Channel Digitizing Oscilloscope has a bandwidth of 500MHz and a sample rate to 2 GS/s. The maximum record length is 50,000 points per channel. The instrument is fully programmable via GPIB (IEEE 488.2) and has GPIB, RS-232 and Centronics I/O ports.
* Vertical Sensitivity: 1 mV/div to 10 V/div
* Sample rate: 2 GSa/s (1 channel)
* Sweep speed: 10 s/div to 500 ps/div

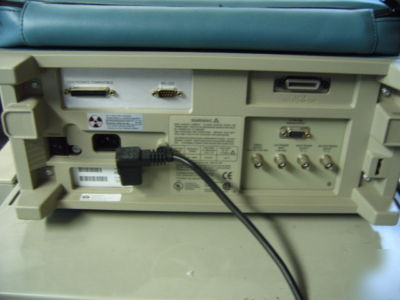

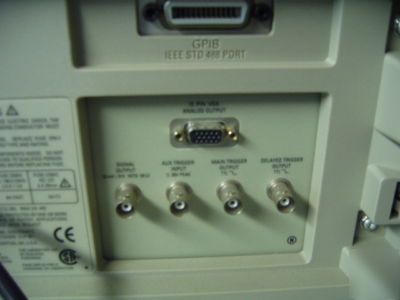

* Interfaces: GPIB, VGA out, RS-232, Centronics
* 1 megohm or 50 ohm input impedance
* 90-250 Vac; 45-440 Hz operation
* Weight: 27 lb; Size: 193 mm (7.6 in)H x 445 mm (17.5 in)W x 432 mm (17.0 in)D
