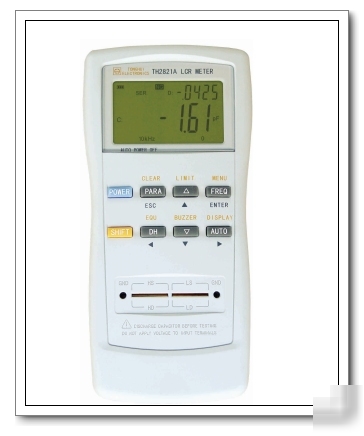

TH2821A lcr rcl lc meter inductance capacitance 10KHZ
TH2821A LCR RCL LC Meter inductance Capacitance 10kHz
TH2821A can measure 6 basic parameters: inductance L, capacitance C, resistance R, impedance Z, dissipation factor D and quality factor Q. It has measurement accuracy of 0.3% and 4-bin sorting. Applied complete 5-terminal measurement configuration solves problem of measurement for equivalent series resistance and capacitor with small dissipation that other portable LCR meters can t solve. It can replace general low-frequency LCR meter.
* Measurement frequency up to 10kHz
* 5-terminal measurement configuration, providing accurate ESR and dissipation measurement
* Battery and external power supply
More information, please click here:
http:// .cn/eng/uploadfile/20061124101010600.pdf
http:// .cn/eng/uploadfile/200921892717587.pdf
* TH26027 4-terminal Kelvin test cable
* GP17R8H chargeable battery (TH2821A)
