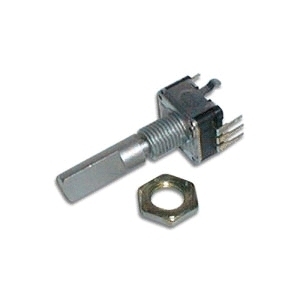

Rotary encoder, panasonic, 30 detent, w push switch (X2
Panasonic Part Nr EVQ-WTEF2515B
Rotary encoder with shaft rotation angle: 360 -endless
detent points 30 (each detent angle 12 3 ),
rating DC 10V @ 1mA (each bit),
contact resistance between terminals 1ohm max,
insulation resistance 50 megohm min @ 250VDC between all terminals and shaft.
5 terminals (3 encoder 2 switch). D shaft is 0.70"L x 0.25"Dia.
