Potter & brumfield 2IOM24 board w/ qty: 15 oacm-5 modul

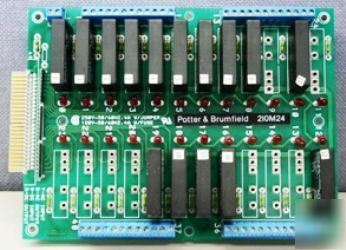

Potter & Brumfield 2IOM24 I/O Mounting Board w/ Qty: 15 OACM-5 Output Modules
2IOM series Space Saving Mounting Boards for Slim Line Input/Output Modules Features:
* LED status indicators, plug-in fuses & pull-up resistors
* Card edge, straight header, right-angle header and screw terminal logic connections
* Screw terminals for field wiring
* UL recognized/CSA certified for 125V max. with 5A fuses; 250V max. with #22 solid copper jumper wire instead of fuses
OACM-5 Slim Line Output Modules Features:
* Slim line 0.4 (10.16mm) thick package
* Foot print same as 0.6 (15.24mm) thick package
* 4,000 Vrms optical isolation
* High immunity to false operation
* Output modules can be controlled from sinking or sourcing logic
* Compatible with 2IOM series mounting boards
* Options: 3A, 24-280VAC, zero voltage turn-on output
