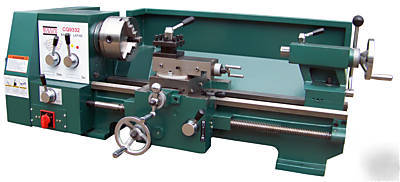

Metal lathe CQ9332 for bench with gear box 12X24


Swing over carriage 200mm 7-7/8"
Distance between centers 600mm 23-3/5"
Lathe Chuck Diameter 170mm 6-7/10"
Lathe Chuck Type 3 Jaw Self Centering
Spindle through bore 38mm 1-1/2"
Spindle Speeds 12(60-1600 RPM)
Longitudinal feed rates 0.1-1.50mm/r 0.004-0.059 in.per revolution
Cross feed rates 0.022-0.3mm/r 0.0008-0.0118 in.per revolution
Tailstock barrel travel 80mm 3-1/7"
****IF RESIDENTIAL DELIVERY WITH LIFT GATE IS NEEDED, THERE WILL BE A $75 FEE****
