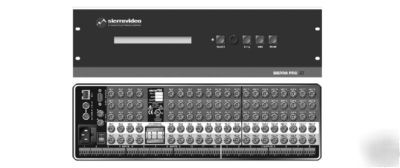

Kramer sierra video 1204V3XL 12X4 rgb matrix switch
Manufacturer: Kramer (Sierra Video)
The Sierra PRO 12 series are high bandwidth routing switchers for RGBHV, RGBS, RGB and s-Video (Y/C) signals. These units come in a compact 3U (5.25 ) frame and can route any or all inputs to any or all outputs. They can be ordered in 5- channel (RGBHV), 4-channel (RGBS), 3-channel (RGB/YUV) or 2-channel (Y/C) configurations, each with or without balanced stereo audio.
Video Features - R/G/B Video Boards
* High Bandwidth - 400MHz (- 3dB) fully loaded.
* Very Low Crosstalk - 80dB @ 1MHz, - 47dB @ 100MHz, - 30dB @150MHz.
* Matrix Mapping Universal Breakaway Switching - A unique and valuable benefit of Sierra Pro routing switchers. This feature allows the switching of every level of every input of the routing switcher independently. Switch a single level or any combination of levels of the R, G, B, H, V, left audio and right audio levels of any input. For example, input a composite video signal on the R level of input one and an s-Video (Y/C) signal on the G and B levels of input one and switch only the composite video signal on the R level, switch only the s-Video Y and C signals on the G and B levels, or switch all three levels together.
* Video Follow Sync Switching - The H and V channels of an RGBHV signal are switched in advance of the RGB video channels of the signal to provide clean, glitch-free switching between most non-synchronous sources.
* Qwik Adjust Knob Rotary Control Interface - This user intuitive knob along with the 80 character LCD display provides quick and convenient setup, adjustment and signal switching.
* Output Disconnect Feature. -
Sync Features - H/V Sync Boards
* Sync Reporting - Through the G.R.I.P.TM control software, RS-232, or the front panel, the routing switcher can capture and report the input sync rates for each input signal.
* Input Detection - 200mv. Re-shapes and re-squares sync to output correct TTL level.
* Selectable Termination - 510 or 75 Ohm (each input).
* Genlock Input - Looping internal sync input for vertical interval switching.
* Audio Type - Balanced or un-balanced stereo on terminal blocks.
* Input (Level) Adjustment Capability (-10dB to +15dB) - Each input via RS-232, front panel, and G.R.I.P software.
* Output (Volume) Adjustment Capability (Mute, -59.5dB to +15dB) - Each input via RS-232, front panel, and G.R.I.P software.
* No Zipper Effect - Sierra Pro XL routing switchers employ zero crossover chip technology which eliminates the annoying zipper sound effect associated with digital volume controls.
* Crosstalk - Series 8 & 12: 80dB @ 1kHz, Series 16 & 32: 80dB @ 15kHz.
* S/N Ratio (20 to 20kHz) - Series 8 & 12: 90dB, Series 16 & 32: 110dB.
* Firmware Updates - Downloadable.
* Control - Local front panel control with 80 character LCD readout.
RS-485 for optional control panels.
G.R.I.P: Windows - based routing switcher setup/diagnostic software.
* Redundant Power Supplies - Optional (standard on all 32 x 32 and 32 x 16 models).
* Control Panels (Optional) - Programmable, Single Bus and XY.
