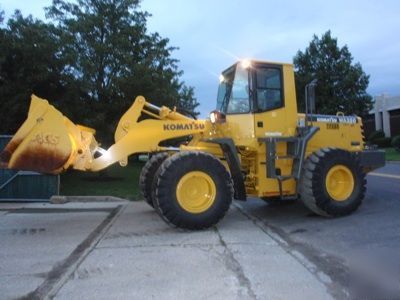

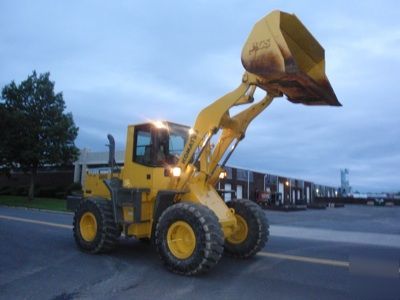

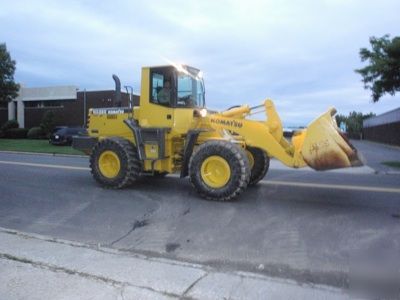

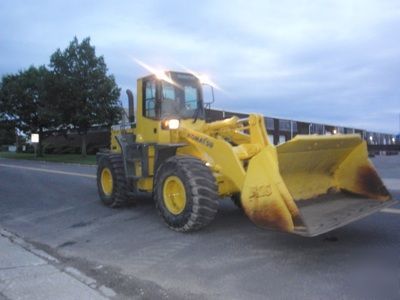

Komatsu wa 320-3MC loader- purchase / rental ad
ACS quick coupler with optional Forks + Jib available!
Machine was originally purchased to be used for road work. The town orded it to be painted blue and orange (their colors). The local Komatsu dealer purchased it and painted it back to its original colors .
Machine's Pins,Bushings, Cylinders, and Hoses are all in excellent shape!
Model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Komatsu S6D114E-1
Type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Direct injection
Aspiration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Turbocharged
Number of cylinders. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Bore x stroke. . . . . . . . . . . . . . . . . . . . 4.5"114 mm x 5.3" 135 mm
Piston displacement. . . . . . . . . . . . . . . . . . . . . . . . . . 505 in38.27 ltr
Governor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . All-speed mechanical
Gross horsepower*. . . . . . . . . . . . . . . . . . . . . . . . 173 HP129 kW
Net flywheel horsepower . . . . . . . . . . . . . . . . . . . 162 HP121 kW
*Gross horsepower output for complete engine operating under
Meets EPAemissions regulations
Gear pump-driven force-lubrication with full-flow filters. All filters
are spin-on for easy maintenance. Dry, two-stage cyclonic air
cleaner for longer element service intervals.
Electric starting motor. . . . . . . . . . . . . . . . . . . . . . . . . . . 24V/7.5 kW
Alternator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24V/50A
Batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 x 12V/150 Ah
Center-pivot frame articulation. Full-hydraulic power assisted steer-
ing independent of engine rpms. Awide articulation angle of 40 on
each side allows a minimum turning radius of 19'11" 6080 mm at
the outside corner of the bucket with bolt-on cutting edge.
Z-bar loader linkage is designed for maximum rigidity and offers
powerful breakout. Rap-out loader linkage design enables shock
dumping for removing sticky materials. Sealed loader linkage pins
with dust seals extend greasing intervals. The bucket is made of
The use of a PPC hydraulic control valve offers lighter operating effort
for the work equipment control levers. The reduction in the lever
force and travel make it easy to operate in the work environment.
Boom. . . . . . . . . . . . . . . . . . . . . . . . . Raise, hold, lower, and float
Bucket . . . . . . . . . . . . . . . . . . . . . . . . . Roll-back, hold, and dump
Comes with Quick Coupler System!
Rental Pricing: $500/Day $1800/Week $4500/Month
Will Rent anywhere in the Tri-State Area. Delivery is an additional cost.
If you are interested in purchasing this unit, call us!
