Array af-20MR-a 12 ac input 8 relay output controller

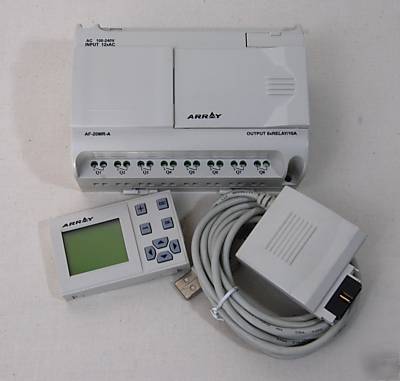

Array FAB Programmable Controller
* This model uses AC power supply, and has 12 points of digital AC input, and 8 points of relay output

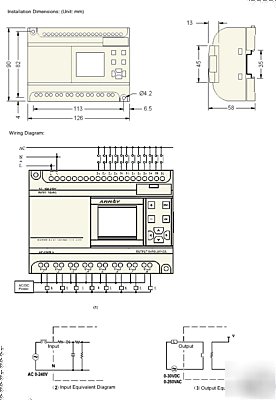

* 90 mm high, 126 mm wide, 58 mm deep
* Multi-functional, easy to operate and program, convenient, easy to learn
* Operation temperature -20 to +70
* Storage/Transportation: -40 to +70
* Interference Regulation: EN55011(B Class)
* Insulation Intensity: IEC1131
* Installation: Use a standard DIN rail or screw for installation
* Main voltage operation range AC85-265V
* Allowable AC frequency range 47-63Hz
* Signal 0 (OFF) AC 0-40V Input current <0.1mA
* Signal 1 (ON) AC 80-240V Input current <0.2mA
* Continuous current max value MAX 10A
