Tektronix DG2030 data pattern generator

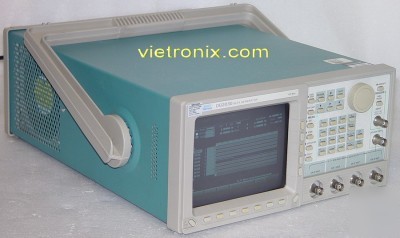

Tektronix DG2030 Data Pattern Generator
Condition: Excellent physical condition. 30 days warranty, please see Term of Sale for more detail.
Unit Included: No document or accessories associated with the unit
The DG2030 provides high performance and a wide range of functions in a compact package. Any memory size from 90 words to 256 K words can be used easily, with no restrictions within that range. Each of 8 bit data channels can be assigned to any output channel. Output channels support setting of high and low output voltage levels, rise and fall time, delay time, and output stages to a high-impedance state. The DG2030 also provides a 4000-step sequence controller, which enables the generation of not only a data pattern longer than the pattern memory but also dynamic pattern change triggered by external events.
The DG2030 provides flexible data editing functions, including word and line unit input and extended data creation functions. Also, the DG2030 provides a rich set of functions required for system construction, such as a sequencing function, a jump function using external input, and an inhibit function. The DG2030 includes the following features:
* Maximum data rate of 400 MHz
* 256 K word pattern memory
* Flexible sequence looping (which does the equivalent of over a billion word patterns)
* 4 channels (with support for up to 8 channels by adding an optional module)
30 Days Warranty: Merchandises are 7 days right of return and 30 days warranty unless specified in description.
Merchandises are fully tested by Vietronix's technicians but limited to calibration and reconditioned. Calibration and reconditioned are subjected 90 days warranty, but sold separately.
90 Days Warranty: All reconditioned and calibrated merchandises are subjected 7 days right of return and 90 days warranted.
Merchandises those are reconditioned calibrated and certified by Vietronix. Recondition and calibration are purchased separately. Extended warranties may be purchased for the most reconditioned and calibrated products. Purchases of reconditioned test equipment are warranted to be in good working order for the period covered. This warranty is limited to repair or replacement of parts or equipment in the determination of Vietronix.
Remove tamper tags will avoid your warranty. All return products will not be accepted if the tamper tags are removed, broken or tampered. We stand behind our products and if you feel necessary to remove our tags, please be sure to test the products first.
