Nsk nakanishi straight air motor spindle MSS1930R 0.75"
Nsk Nakanishi Straight Air Motor Spindle MSS1930R 0.75"
AIR MOTOR SPINDLE MSS-1930R 0.75" (19.05mm) 30,000 min-1(rpm)
The MSS-19 and MSS-20 Series Air Motor Spindles incorporate a specially designed 30,000 min-1(rpm) air motor. The {8,000 and 2,000 min-1(rpm)} versions also utilize a high-precision small planetary gear speed reducer system which provides high torque, high output power and excellent durability.
This MSS-19 and MSS-20 Series motor spindles are designed to be mounted in a 0.75" and 0.79" holder respectively. This greatly extends the capabilities of existing NC and CNC lathes and also makes them very easy to incorporate in the design of special purpose machinery.
MSS-1930R Air Motor Spindle Collet 1/8" (CHA-3.175) : 1 pc. Collet Nut (CHN-A) Wrench (8 x 5), (9 x 11) : 1 pc. each Hose (K-221) (R type) : 6 ft Hose (K-215) (RA type) : 6 mm x 6 ft Hose (K-216) (RA type) : 8 mm x 3 ft Silencer (K-209) (R type) Silencer (K-208) (RA type) Operation Manual.

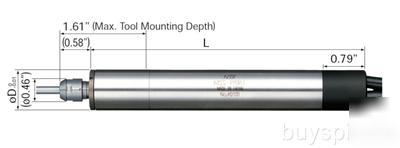

MSS-1930R Air Motor Spindle Specifications
D = 0.75"( 19.05 mm) 30,000 min-1(rpm)
