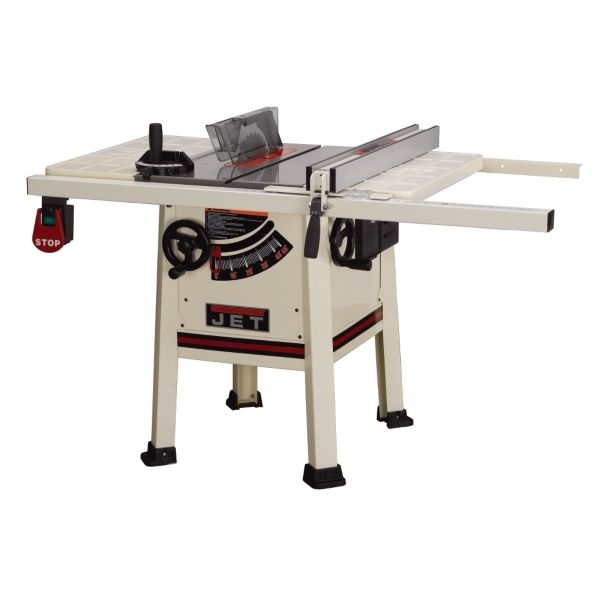

New jet 10" left tilt table saw w/ 30" fence 708480K
JET JPS-10XL30SW, 10" Left Tilt ProShop Table Saw W/ 30" ProShop Fence
* Exclusive 30" ProShop fence system with T-square design
* Integrated arbor lock allows for quick, safe and easy blade changes
* Heavy-duty cast-iron table with T-style miter slot provides large flat work surface and increased cross cut capacity
* Enclosed cabinet with exclusive leg stand design for easy assembly
* 4" dust port for increased dust collection efficiency
* Rigid, left tilting cast-iron trunnion
* Powder-coated paint for a long-lasting, chip-resistant finish
* Steel extension wings for added work piece support
Motor 1-3/4 HP; 1 Ph Blade Diameter 10" Arbor Diameter 5/8" Arbor Speed 3,600 RPM Maximum Depth of Cut 3-1/8" Maximum Depth Of Cut (at 45 ) 2-1/8" Maximum Diameter Of Dado 8" Maximum Width of Dado 13/16" Table Size (w/ Extension) 27" x 44" (L x W) Dust Port Diameter 4" Maximum Rip Right of Blade 30" Table Height 34-3/4" Table In Front Of Saw Blade At Maximum Depth Of Cut 10-1/2" Maximum Rip Left of Blade 12" Table Type Cast-Iron Motor Amperage 17/9 Maximum Cross Cut 21" Table Size (w/o Wings) 27" x 20" (L x W) Miter Gauge Type Deluxe Overall Dimensions 60" x 35" x 39" (L x W x H) Net Weight 285 lbs. 27" X 20" (L X W) Dust Collection Minimum CFM Required
* 10" Left Tilt ProShop Table Saw w/ 30" ProShop Fence - 708480K
