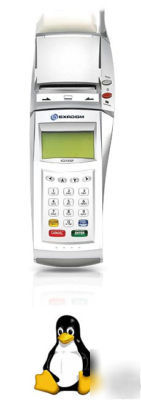

Exadigm XD2100SP wireless credit card terminal
If You Have any questions or would like to order over the Telephone, Please call Us at: 1-(***)-835-0324
This equipment comes in two different communication modem: GSM/GPRS or CDMA
If you have any questions about the product or would like to pay over the Telephone please call us at: 1-(***)-835-0324
Truly modular design creating a single terminal delivering limitless possibilities, total choice and industry-leading capabilities
Linux operating system allowing for fast, affordable software and application changes, updates and customization
Advanced connectivity options providing the flexibility of interchangeable modems supporting a complete range wired and wireless communication types
PC style components, such as host-based USB and Serial Ports, allow for easy integration of peripherals and other hardware devices with little or no software changes
Incorporating ExaDigm's renowned fully modular design and PC-based Linux operating system, the XD2100SP continues the philosophy of a one terminal-one technology approach delivering a single terminal platform offering multiple connectivity options, easy software upgrades, and simple configuration to adapt to new technologies. With Ethernet back-up built directly into the terminal, and a wide range of interchangeable modems available supporting Ethernet WiFi, CDMA, GSM, Bluetooth and dial connections, the XD2100SP delivers unsurpassed flexibility, security, adaptability, mobility and choice.
RS-232 port (with RJ11 connector) for peripherals including external PIN pads and check readers
RJ45 Ethernet port for wired Ethernet back-up
A wide range of interchangeable modems, supporting any number of combinations of Ethernet, WiFi, CDMA, GSM, Bluetooth and dial connectivity, are available for the XD2100SP. To see our full line of 2000 Series interchangeable modems
The XD2100SP offers the option of integrating Smart Card Reader into the front of the terminal at the time it is configured at the factory. The Smart Card Reader supports ISO14443 Type A and B and up to 4 SAMs and is EMV Level 1 compliant.
"always active" wide bandwidth & wireless services
intuitive advanced ATM style interface
long-life removable lithium ion battery
full size paper roll and continuous paper load
advanced high level security features
The specifications for the XD2100SP listed below are subject to change without any prior notice. Please contact your sales representative for a detailed product description.
Battery pack with built-in charger
High capacity Lithium-ion 7.2V DC removable battery
APM Advanced Power Management
128 x 64 pixel graphical LCD with back lighting
8 lines x 21 characters and graphics with 16 shades of grey
32 F to 104 F (0 C - 40 C)
3x4 back-lit numeric keypad with 4 soft function keys
Reads ISO track 1 and 2 or optional ISO track 2 and 3
Triple track reader (optional)
8MB Flash ROM expandable to 32MB
Interchangeable modems in a range of configurations of the following communication protocols:
Fast connect dial modem (Bell 103/212a, 300/1200/2400 bps V.21, V.22, V.22bis asynchronous and 1200/2400 bps synchronous)
10 MPS integrated Ethernet port
RJ45 Ethernet port for Ethernet and dial back-up
32 bit ARM 7 RISC microprocessor
Integrated graphic thermal printer, 57mm large capacity paper roll capacity
12 lines per second, 24 or 32 columns
Multi-language font capability that can be scaled double-high, double wide, or double-high and double wide
3DES encryption, Master/Session and DUKPT key management
If you have any questions about our products or would like to pay over the Telephone please call us at 1-(***)-835-0324.
