Brooks 3332 meinecke wp turbine flow meter, 3", 880 gpm

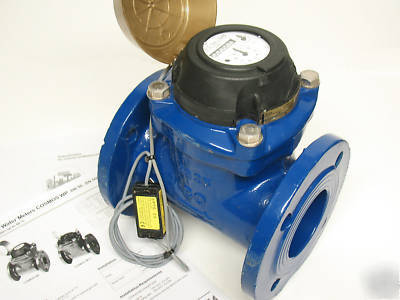

ITEM: BROOKS Model# 3332A03A31AH 3300 Series Propeller (Turbine) Flowmeter (It is a MEINECKE model COSMOS WP flowmeter private-label manufactured for BROOKS by MEINECKE in Germany and marketed by BROOKS in the USA - MEINECKE now markets their flowmeters directly in the USA), 880.8 GPM (US Gallons per Minute) Max. Flow Rate (see chart below), 6-Digit Totalizer, 99999999 USG Max. Total, 0-10 x10 USG Dial Secondary Register, 0-10 x1 USG Dial Main Register w/ 0.1 USG Minor Divisions, Fitted w/ OPTO Style Pulser High Frequency Pulsed Output (OPTO 03, 1 Pulse per 2.64 USG or 0.010 m3), Corrosion-Resistant Powder-Coated Cast Iron Body, PN 40 bar Working Pressure, TESTED OK.
NOTE: The OPTO is a 2-wire current switching device. This type of pulse is normally used for conversion to analog signals; (4-20mA) or as inputs to high definition batching units.
- Horizontal, vertical or inclined installation
- Measuring of cold water up to 40 C (overloadable up to 50 C)
- Sealed register press water proof (IP 67)
- Sealed register may be rotated through 360
- Maximum corrosion protection by powder coating
- No affect by external magnetic fields
- Performance data better than class B
Maximum Peak Flow - 880.8 / 200

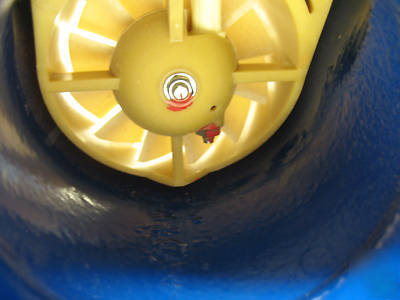

CONDITION: Appears NEW, probably field calibrated and not placed in service or was installed and pulled shortly after installation (came to us with a lot of new, unused items that were left from a cancelled construction project), w/ external scratches, a small crack on the lower part of the black plastic register housing that does not affect operation, internal surfaces in EXCELLENT condition, w/ OPTO frequency output module; TESTED OK w/ air flow - turbine moves freely and registers mark flow perfectly.
SOURCE: From a cancelled construction project at a large pharmaceutical manufacturing facility, surplus to their ongoing operations.
SELLS ELSEWHERE FOR APPROX.: $1,400 w/ Pulser.
