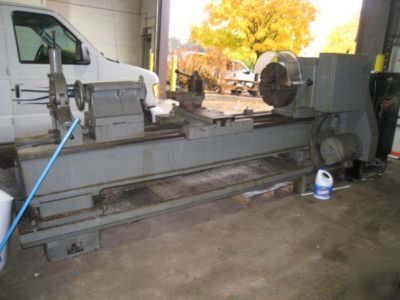

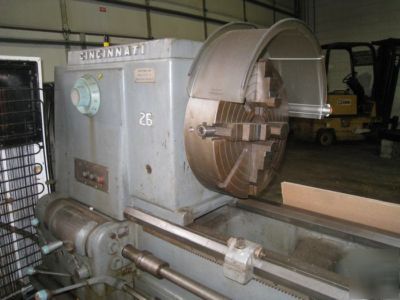

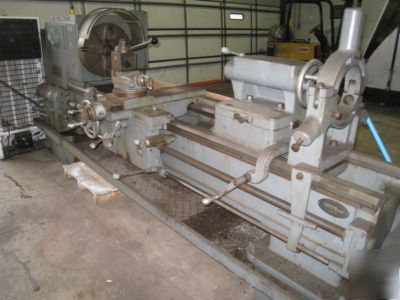

26" x 72" cincinnati hydrashaft toolroom engine lathe
26" X 72" CINCINNATI HYDRASHAFT TOOLROOM ENGINE LATHE
Swing over cross slide 17 1/2"
Distance between centers, (max. turning length) 72"
Spindle speed range, standard (40 to 1 ratio) 16 to 640 RPM
Spindle speed reverse Electrical
Spindle nose- standard long taper key drive L-2
Spindle diameter of hole thru - L series only 2 5/16
Spindle size of center #5 MorseBed:
Number of thread and feed changes 54
Range of thread per inch,low, standard and
high speed ranges 1 1/2" to 92"
Range of feeds - carriage, low, standard and
high speed ranges .0019 to .1215 IPR
Range of feeds - cross slide, low, standard and
high speed ranges .0009 to .0578 IPR
Leadscrew (Acme) diamter in inches and threads per inch 1 5/8 - 4"
GENERAL SPECIFICATIONS: (cont.)
Tool holders-size of tool shank 3/4" x 1 5/8"(#3)
Spindle-size of center #5 Morse
Max. turning length at one setting 20"
Max. included angle 20 deg. Misc. Steady rest, standard capacity-min. and max. diameter1/2 to 8 Drive Motor: Motor-standard, high or super high spindle speed range 10 HP Net weight (approx.) 7,500 LBS
