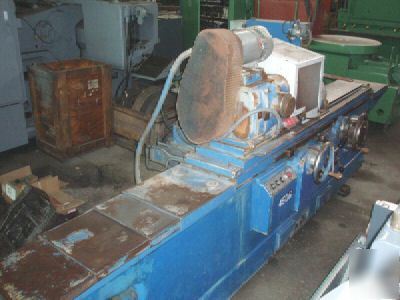

14" x 48" cin-mila univ cylindrical grinder #24591
14" X 48" CINCINNATI-MILACRON UNIVERSAL
New 1971, Serial No 35324E5Y-0002, Ltr DE
Pickfeed - Live/Dead Center Headstock
2" Grinding Wheel Width Option
Swing Over Table, Maximum................ 14.9375"
Grinding Diameter, Minimum............... 0"
Grinding Diameter, Maximum............... 14"
Distance Between Centers, Nominal........ 48"
Grinding Wheel Diameter, Standard........ 14"
Grinding Wheel Width, Standard........... 1.5"
Table Swivel Taper Away Wheelhead........ 1.250" TPF
Headstock Swivel Angle Toward Wheelhead.. 90-DEGREES
Headstock Swivel Angle Away Wheelhead.... 30-DEGREES
Lower Grinding Wheelhead Swivel Range.... 90-DEGREES
Upper Grinding Wheelhead Swivel Range.... 30-DEGREES
Workhead And Tailstock Center Tapers..... #9 B&S
Table Longitudinal Feeds, Infinite....... 3 TO 240 IPM
Grinding Wheelhead Spindle Motor......... 5 HP
Workhead Motor, Horsepower............... 1 HP AC
Floor Space Required, L x D.............. 12'9" X 5'6"
