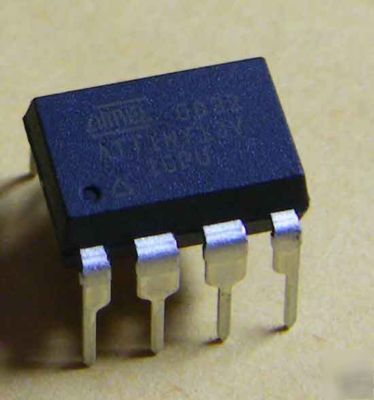

10X atmel ATTINY13V-10PU avr 8-bit microcontroller
High Performance, Low Power AVR 8-Bit Microcontroller
120 Powerful Instructions Most Single Clock Cycle Execution
32 x 8 General Purpose Working Registers
Up to 20 MIPS Througput at 20 MHz
Non-volatile Program and Data Memories
1K Byte of In-System Programmable Program Memory Flash
Endurance: 10,000 Write/Erase Cycles
64 Bytes In-System Programmable EEPROM
Endurance: 100,000 Write/Erase Cycles
Programming Lock for Self-Programming Flash Program and EEPROM Data
One 8-bit Timer/Counter with Prescaler and Two PWM Channels
4-channel, 10-bit ADC with Internal Voltage Reference
Programmable Watchdog Timer with Separate On-chip Oscillator
Special Microcontroller Features
debugWIRE On-chip Debug System
In-System Programmable via SPI Port
External and Internal Interrupt Sources
Low Power Idle, ADC Noise Reduction, and Power-down Modes
Enhanced Power-on Reset Circuit
Programmable Brown-out Detection Circuit
Internal Calibrated Oscillator
8-pin PDIP/SOIC: Six Programmable I/O Lines
ATtiny13V: 0 - 4 MHz @ 1.8 - 5.5V, 0 - 10 MHz @ 2.7 - 5.5V
ATtiny13: 0 - 10 MHz @ 2.7 - 5.5V, 0 - 20 MHz @ 4.5 - 5.5V
Industrial Temperature Range
