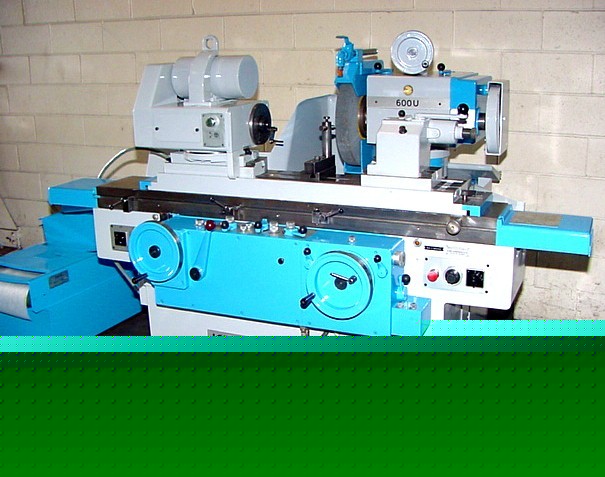

KELLENBERGER 600U UNIVERSAL ID/OD CYLINDRICAL GRINDER
13.8" X 24" KELLENBERGER "SWISS" "HIGH-PRECISION"
FACTORY RISER BLOCKS AVAILABLE FROM
MODEL: 600U S/N: 1320-451 NEW: 1982
HEIGHT OF CENTERS, AS PRESENTLY CONFIGURED .... 13.8"
MAXIMUM SWING WITH FACTORY RISER BLOCKS ....... 19- 5/8"
DISTANCE BETWEEN CENTERS (NOMINAL)............. 23- 5/8"
OVERHANGING .................................. 29- 1/2"
LONGITUDINAL TABLE TRAVEL .................... 35- 1/2"
LONGITUDINAL TABLE TRAVEL PER TURN OF HANDWHEEL:
COARSE ....................................... 25/32"
FINE .......................................... 3/32"
1 GRADUATION OF FEED SCALE .................. 0.0002"
AUTOMATIC FEED, MAXIMUM ...................... 0.035"
AUTO. INFEED PER TABLE REVERSAL .. 0.00005" TO .0012"
MICROMETER STOP, 1 GRADUATION .............. 0.00005"
TRANSVERSE MOVEMENT OF WHEEL SLIDE .......... 11-1/4"
STROKE ................................... 1-9/16"
GRINDING ............................ 16" X 2" X 5"
GRINDING WHEEL (SURFACE GRINDING) ... 10" X 3/4" X 3"
HEIGHT OF CENTERS ........... 4-59/64" TO 13-25/32"
INSIDE TAPER OF WORK SPINDLE ................... #5MT
ADJUSTABLE CENTER HEIGHT FEATURE W/MAXIMUM SWING 19.625"
DUAL LEFT-HAND (O.D.) & RIGHT-HAND WHEEL MOUNTING (FACE GRINDING) WITH SWING AROUND I.D. GRINDING UNIT
THREE WHEELHEAD MACHINE .... O.D./I.D/FACE GRINDING
CURRENTLY SET-UP AS 13.8" SWING, CAPACITY CAN BE INCREASED
TO 19- 5/8" MAX. SWING .... SEE INFO ABOVE & BELOW ON
-INTERNAL GRINDING SPINDLE, MADE BY FORTUNA, 12,500 MAX.
RPM, MODEL No. 580x250R, S/N: 150465
-9" DIAMETER MAGNETIC CHUCK W/ADAPTOR TO #5MT & DRAWBAR
-4-JAW CHUCK MOUNTED ON A FACE PLATE, 5MT ADAPTOR &
-SWING BACK TABLE MOUNTED WHEEL DRESSER w/MICROMETER
ADJUSTMENT COMPLETE w/BASE PLATE
-DRAW BAR FOR 5C COLLETS COMPLETE WITH 5C COLLET NOSE PIECE
-#5 MT TO #2MT REDUCTION SLEEVE & DRAW BAR
-#5MT TO #3MT REDUCTION SLEEVE (TAPER LOCK)
-CABINET FOR STORAGE OF ACCESSORIES
"DARENTH" COOLANT SYSTEM w/PAPER FILTRATION
FACTORY RISER BLOCKS AVAILABLE FROM KELLENBERGER TO
INCREASE THE SWING OF THIS MACHINE TO 19- 5/8" (250mm CENTER HEIGHT)
** THIS MACHINE WAS COMPLETELY TAKEN APART & GONE THROUGH
BY OUR STAFF. WHAT A TERRIFIC MACHINE! **
