Scott specialty gases M3300A CGA580 nitrogen regulator

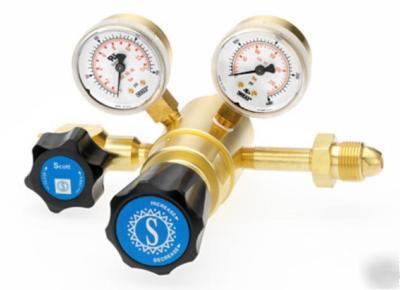

Scott Specialty Gases M3300A CGA580 (Nitrogen) Regulator
This single-stage brass bar stock regulator provides excellent service wherever regulated delivery of noncorrosive ultra high-purity gases from high-pressure sources are required. As with any typical single-stage design, when cylinder gas pressure decreases, periodic readjustment of delivery pressure is necessary.
# Stainless steel diaphragm minimizes diffusion of air into regulator to eliminate off-gassing.
# Brass diaphragm outlet valves provides on/off flow control and helps maintain gas purity.
# Threaded bonnet allows for easy panel mounting.
# Threaded holes in rear of regulator allow for front panel mounting
# Mesh cup filter protects internal parts from damaging debris and extends regulator service life.
Inlet Pressure: 3000 psig (207 bar) maximum
Operating Temperature Range: -40 F to 140 F (-40 C to 60 C)
Supply Pressure Effect: 1 psi per 100 psi (0 bar per 6.9 bar)
Regulator Inlet Port: " NPT Female
Outlet Connection: " NPT Female and all other configurations
