Nsk nakanishi straight air motor spindle mssh-2506R 1"
Nsk Nakanishi Straight Air Motor Spindle MSSH-2506R 1"
AIR MOTOR SPINDLE MSSH-2506R 1.0" (25.4mm) 6,000 min-1(rpm) 1/4 SPEED REDUCTION
The MSSH-25 MSS-25 Series Air Motor Spindles incorporate a specially designed 24,000 min-1(rpm) air motor. The {6,000 and 1,500 min-1(rpm)} versions also utilize a high-precision small planetary gear speed reducer system which provides high torque, high output power and excellent durability.
6,000 min-1(rpm) : 1/4 motor speed reduction, Torque is 4 times greater than motor torque.
1,500 min-1(rpm) : 1/16 motor speed reduction, Torque is 16 times greater than motor torque.
This MSSH-25 MSS-25 Series motor spindles are designed to be mounted in a 1.0"( 25.4 mm) 0.98"( 25 mm) holder. This greatly extends the capabilities of existing NC and CNC lathes and also makes them very easy to incorporate in the design of special purpose machinery.
MSSH-2506R Air Motor Spindle Collet 1/8" (CHK-3.175) : 1 pc. Collet Nut (K-265) Wrench (8 x 14) : 2 pcs. Hose (K-204) (R type) : 6 ft Hose (K-215) (RA type) : 6 mm x 6 ft Hose (K-216) (RA type) : 8 mm x 3 ft Silencer (K-209) (R type) Silencer (K-208) (RA type)
MSSH-2506R Air Motor Spindle Specifications
Hose Diameter (R-type) : Air Intake 6.7 mm (O.D.)

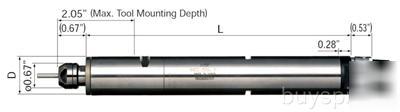

D = 1.0"( 25.4 mm) 6,000 min-1(rpm) 1/4 Speed Reduction
